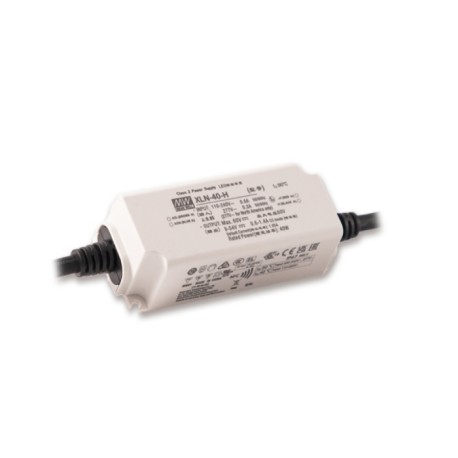

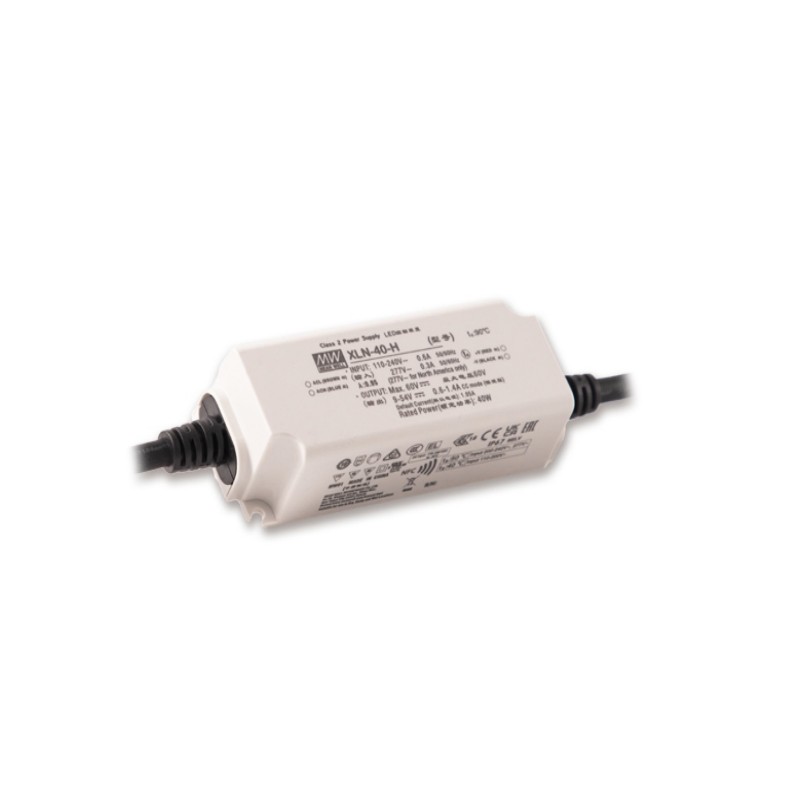

XLN-40-H-B

Mean Well LED driver series XLN-40

LED drivers in a plastic housing (IP67) with 40W, a 3 in 1 dimming function, a low no-load power (<0,5W) and an NFC function. These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications and comply witn EN61347-1, EN61347-2-13, EN62384, EN55015 as well as EN61547. We offer the type XLN-40-H-B of this Mean Well series.

  • single output
  • output: 40W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
  • dimensions: 114x44x32mm
XLN-40-H-B, Mean Well LED drivers, 40W, IP67, constant power/voltage, dimmable, NFC, XLN-40 series

XLN-40-H-B

245541 XLN-40-H-B XLN-40-H-B Mean Well LED driver series XLN-40. LED drivers in a plastic housing (IP67) with 40W, a 3 in 1 dimming function, a low no-load power (&lt;0,5W) and an NFC function. These devices have a built-in active PFC function and are protected against&nbsp;overtemperature as well as short circuit. They are suitable for LED lighting applications and comply witn EN61347-1, EN61347-2-13, EN62384, EN55015 as well as EN61547. We offer the type XLN-40-H-B of this Mean Well series. single output output: 40W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90&deg;C dimensions: 114x44x32mm

Specifications

manufacturer
Manufacturer's name XLN-40-H-B
Output voltage [V] 9...54
Efficiency [%] 88
Output current [A] 0,6...1,4
Output power [W] 40
Data Sheet

Unit price

20,59 €

Volume discounts

Quantity Unit price
50 + 19,39 €

Stock: 26
Further delivery:
CW 05/2026
