XTR-240P-24PI

Mean Well DIN rail power supplies series XTR-240

Power supplies in a closed housing with 180W and a DC-OK signal. These devices with a parallel function are suitable for DIN rail mounting and they are protected against over voltage, over load, as well as short circuit. We offer various types of this Mean Well series.

  • current: 180W
  • input voltage range: 320 to 600V AC (47 to 63Hz), 450 to 800V DC
  • maximal inrush current: 10A
  • operating temperature: -40 to +85°C
  • dimensions: 48x125.2x125mm
  • weight: 800g

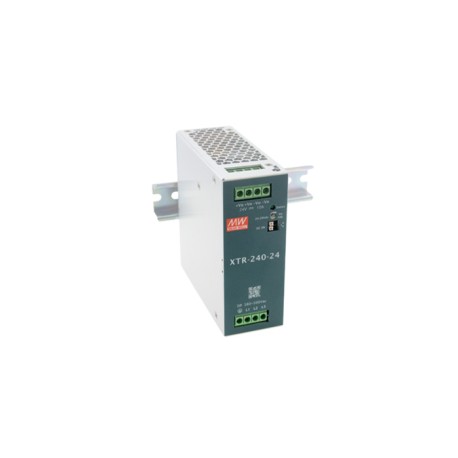

XTR-240P-24PI, Mean Well DIN rail power supplies, 180W, XTR-240 series

XTR-240P-24PI

251793 XTR-240P-24PI XTR-240P-24PI Mean Well DIN rail power supplies series XTR-240. Power supplies in a closed housing with 180W and a DC-OK signal. These devices with a parallel function are suitable for DIN rail mounting and they are protected against over voltage, over load, as well as short circuit. We offer various types of this Mean Well series. current: 180W input voltage range: 320 to 600V AC (47 to 63Hz), 450 to 800V DC maximal inrush current: 10A operating temperature: -40 to +85°C dimensions: 48x125.2x125mm weight: 800g

Specifications

manufacturer
Manufacturer's name XTR-240P-24PI
Output voltage [V] 24
Output current [A] 10
Data Sheet

Unit price

54,89 €

Stock: 0
Further delivery:
CW 25/2026

Minimum order quantity 200 units or
multiples of 200.
