XTR-480-48LA

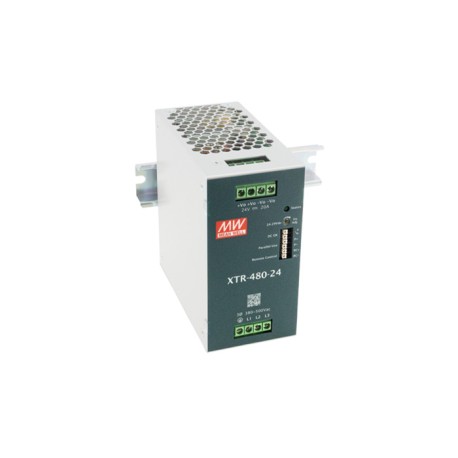

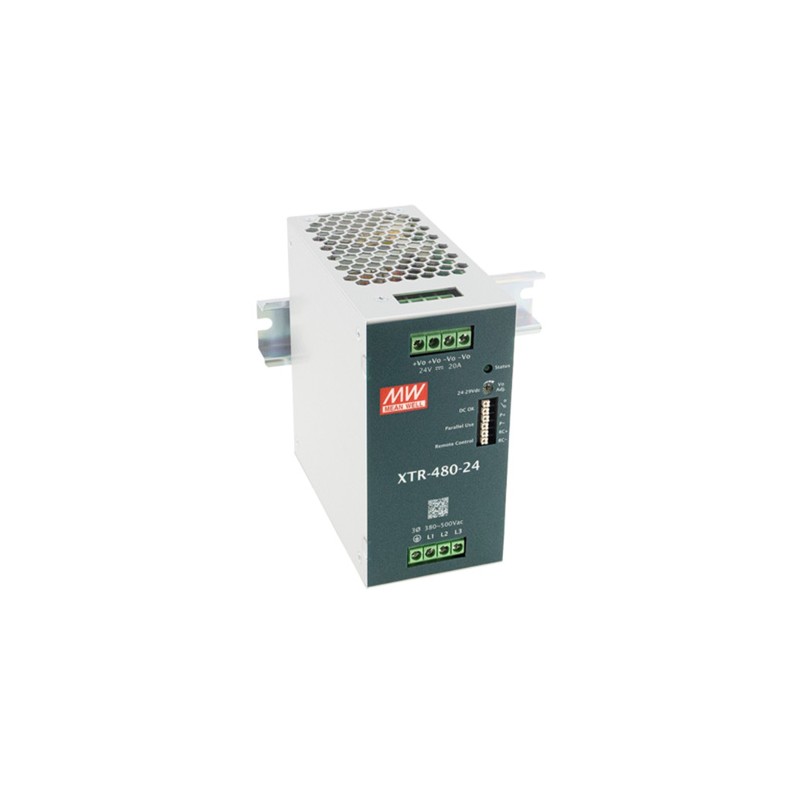

Mean Well DIN rail power supplies series XTR-480

Power supplies in a closed housing with 480W and a DC-OK signal. These devices with a remote function are suitable for DIN rail mounting and they are protected against over voltage, over load, as well as short circuit. We offer various types of this Mean Well series.

  • current: 480W
  • input voltage range: 320 to 600V AC (47 to 63Hz), 450 to 800V DC
  • maximal inrush current: 10A
  • operating temperature: -40 to +85°C
  • dimensions: 63x125.2x125mm
  • weight: 1300g
XTR-480-48LA, Mean Well DIN rail power supplies, 480W, XTR-480 series

XTR-480-48LA

251822 XTR-480-48LA XTR-480-48LA Mean Well DIN rail power supplies series XTR-480. Power supplies in a closed housing with 480W and a DC-OK signal. These devices with a remote function are suitable for DIN rail mounting and they are protected against over voltage, over load, as well as short circuit. We offer various types of this Mean Well series. current: 480W input voltage range: 320 to 600V AC (47 to 63Hz), 450 to 800V DC maximal inrush current: 10A operating temperature: -40 to +85°C dimensions: 63x125.2x125mm weight: 1300g

Specifications

manufacturer
Manufacturer's name XTR-480-48LA
Output voltage [V] 48
Output current [A] 10
Data Sheet

Unit price

99,19 €

Volume discounts

Quantity Unit price
50 + 97,09 €

Stock: 0
Next incoming goods:
CW 51/2025
39 units

Further delivery:
CW 05/2026
