26-01-3115

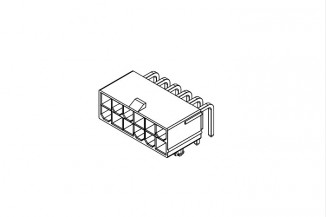

Molex socket housing series Mini Fit Jr. 5569

1- and 2-row male connector housings angled at 90° with a pitch of 4,2mm. These connectors allow wire-to-board configurations and are suitable for a PCB thickness of 1,78mm. They are made of polyamide nylon 6/6 and have a maximal durability of 30 mating cycles. We offer various 2 to 10 pole types of this Molex series.

  • pitch: 4,2mm
  • housing material: nylon 6/6
  • maximal rated current: 13A
  • maximal voltage: 600V
  • operating temperature: -40 bis +105°C
  • maximal soldering temperature: 240°C/5s

26-01-3115 26013115

26-01-3115

242493 26-01-3115 26013115 26013115 Molex socket housing series Mini Fit Jr. 5569. 1- and 2-row male connector housings angled at 90° with a pitch of 4,2mm. These connectors allow wire-to-board configurations and are suitable for a PCB thickness of 1,78mm. They are made of polyamide nylon 6/6 and have a maximal durability of 30 mating cycles. We offer various 2 to 10 pole types of this Molex series. pitch: 4,2mm housing material: nylon 6/6 maximal rated current: 13A maximal voltage: 600V operating temperature: -40 bis +105°C maximal soldering temperature: 240°C/5s

Specifications

manufacturer
Manufacturer's name 26013115
Design double-row
Number of poles 4
Data Sheet

Unit price

0,838 €

Stock: 500
Further delivery:
CW 34/2024

Minimum order quantity 25 units or
multiples of 25.
