PLCC 32

PLCC sockets

* PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052)
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C

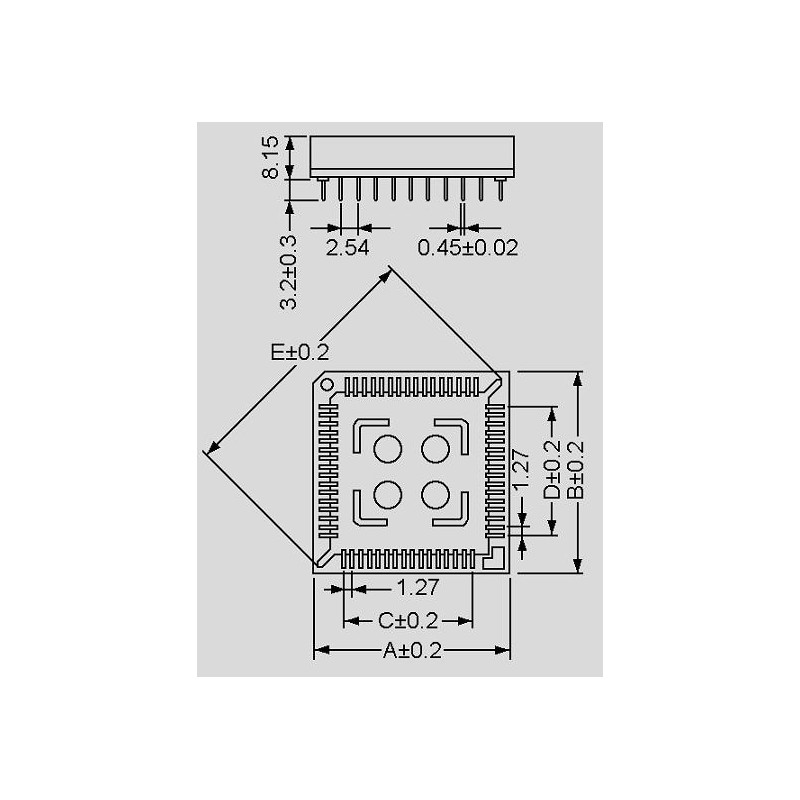

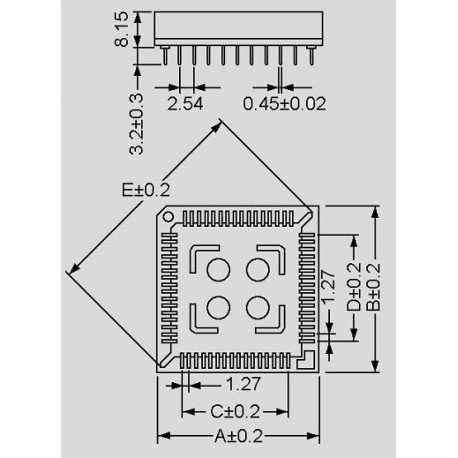

dimensions

PLCC 32

10359 PLCC 32 081-1-032-0-XT0 081-1-032-0-XT0 PLCC sockets. * PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052)* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 081-1-032-0-XT0
E [mm] 23,65mm
Number of poles 32
A [mm] 23,18
Width [mm] 23,18
E [mm] 23,65
D [mm] 10,16
C [mm] 7,62
Data Sheet

Unit price

1,05 €

Stock: 1
Next incoming goods:
CW 06/2027
1472 units

Further delivery:
CW 08/2027

Minimum order quantity 1 unit or multiples of 23 plus 0 to 1 .
