PLCC 84

PLCC sockets

* PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052)
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C

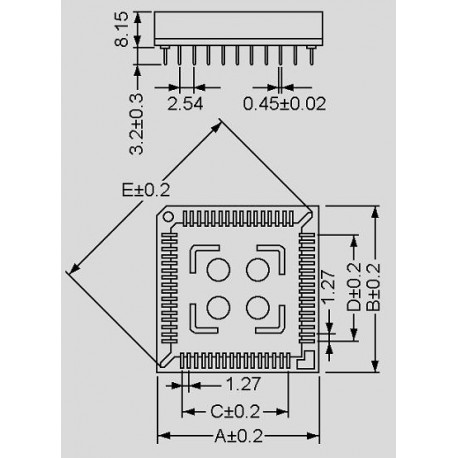

dimensions

PLCC 84

10363 PLCC 84 081-1-084-0-XT0 081-1-084-0-XT0 PLCC sockets. * PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052)* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 081-1-084-0-XT0
E [mm] 47,15mm
Number of poles 84
A [mm] 35,88
Width [mm] 35,88
E [mm] 47,15
D [mm] 25,4
C [mm] 25,4
Data Sheet

Unit price

1,74 €

Stock: 2975
Further delivery:
CW 40/2024

Minimum order quantity 1 to 11 units or multiples of 13 plus 0 to 11 .
