115-1-020-0-MTF-XS0

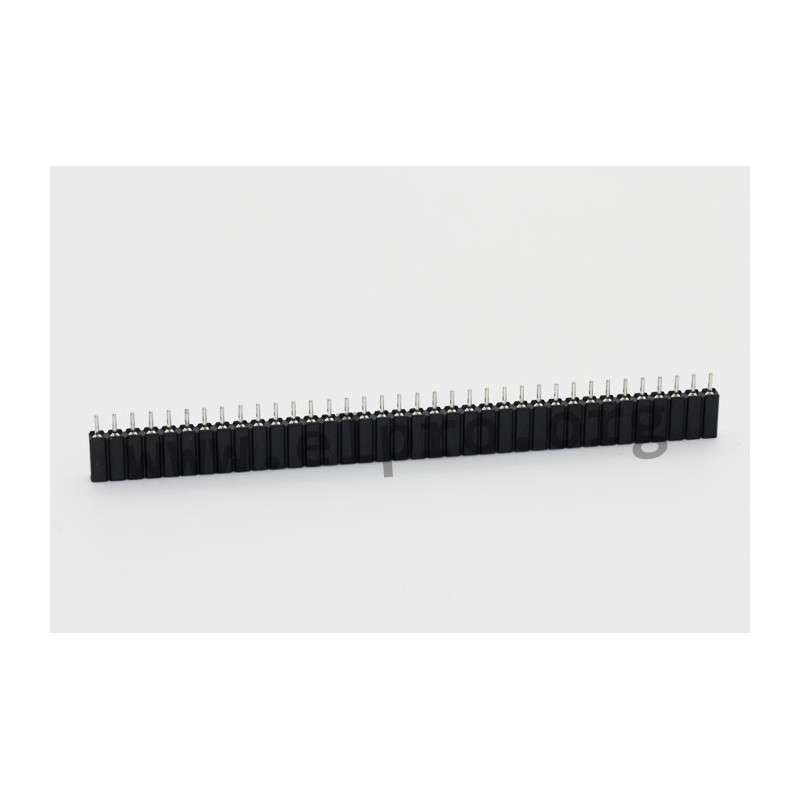

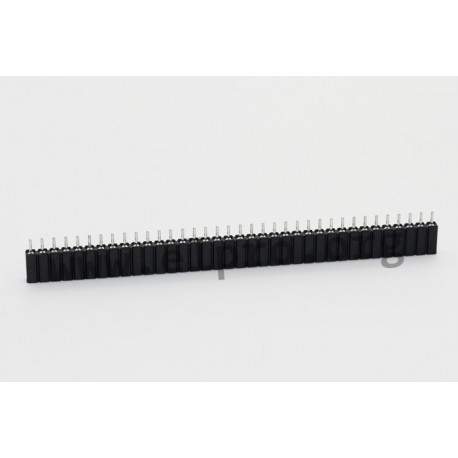

MPE Garry precision socket strip series 115

  • single and double row precision socket strips in a straight design
  • with turned and gold-plated contacts
  • easy cutting due to star-shaped opening between the contacts (115-2_)
  • suitable for round pins with a diameter of 0,7 to 0,8mm as well as for 0,64x0,64mm square pins
  • with 6 beryllium copper fingerclips
  • rated current: 3A

115-1-020-0-MTF-XS0

135397 115-1-020-0-MTF-XS0 115-1-020-0-MTF-XS0 MPE Garry precision socket strip series 115. single and double row precision socket strips in a straight design with turned and gold-plated contacts easy cutting due to star-shaped opening between the contacts (115-2_) suitable for round pins with a diameter of 0,7 to 0,8mm as well as for 0,64x0,64mm square pins with 6 beryllium copper fingerclips rated current: 3A

Specifications

manufacturer
Manufacturer's name 115-1-020-0-...
Design straight
Number of poles 1x20
Height [mm] 7,0
Data Sheet

Unit price

2,09 €

Stock: 3920
Next incoming goods:
CW 17/2024
1330 units


Further delivery:
CW 40/2024

Minimum order quantity 10 units or
multiples of 10.
