STL 22-0835-1,5-G-GT-008U

pin headers

• by MPE Garry
• double-row, straight
• pitch: 2 mm
• thermoplastic, UL94V-0
• contact material: copper alloy
• contact surface: selective gold
• rated current: 1.5A
• rated voltage: 100VRMS/150V DC
• temperature range: -40...+105°C
• peak (10s): +260°C

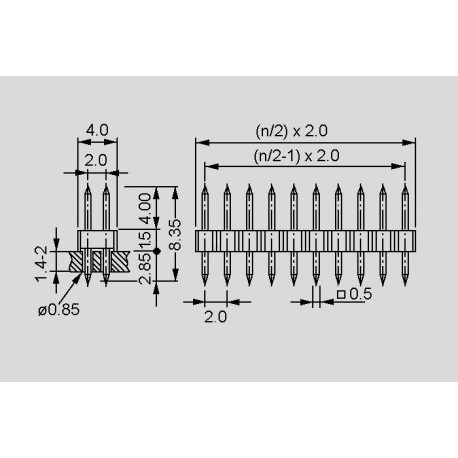

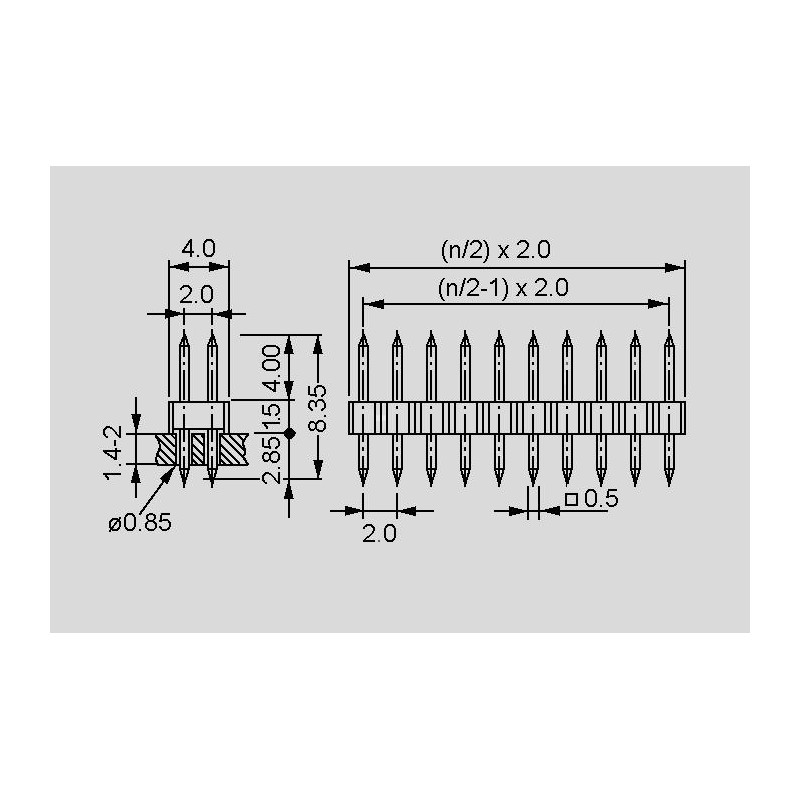

dimensions

STL 22-0835-1,5-G-GT-008U

32879 STL 22-0835-1,5-G-GT-008U 150-3-008-0-S-XS0-0835 150-3-008-0-S-XS0-0835 pin headers. • by MPE Garry• double-row, straight• pitch: 2 mm• thermoplastic, UL94V-0• contact material: copper alloy• contact surface: selective gold• rated current: 1.5A• rated voltage: 100VRMS/150V DC• temperature range: -40...+105°C• peak (10s): +260°C

Specifications

manufacturer
Manufacturer's name 150-3-008-0-...
Number of poles 2x4

Unit price

0,259 €

Stock: 5990
Further delivery:
CW 50/2024

Minimum order quantity 10 units or
multiples of 10.
