STL 12-02AGG-15-010U

pin headers

* by MPE Garry
* single-row, angled
* thermoplastic, UL94V-0
* contact material: copper alloy
* contact surface: gold
* rated current: 1.5A
* rated voltage: 100VRMS/150V DC
* temperature range: -40...+105°C
* peak (10s): +260°C

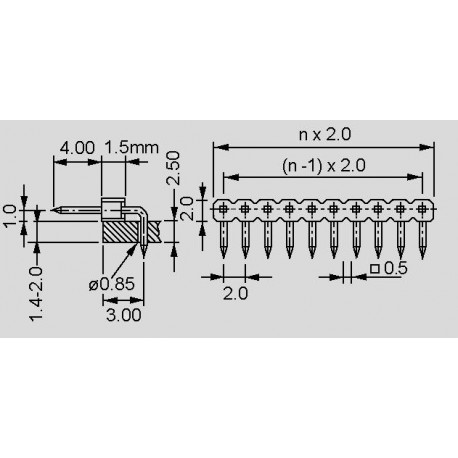

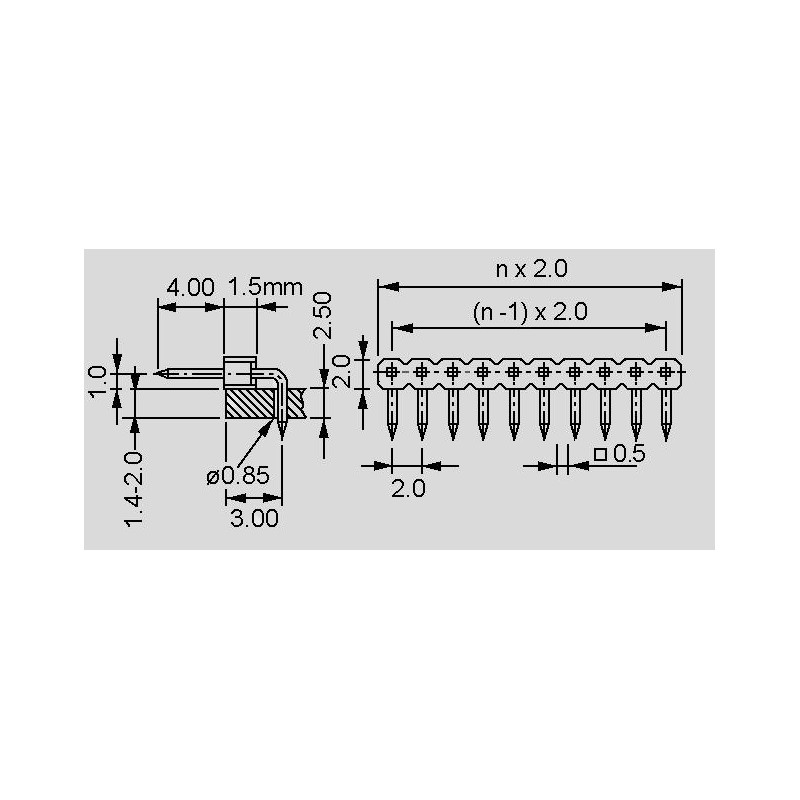

dimensions

STL 12-02AGG-15-010U

32863 STL 12-02AGG-15-010U 332-1-010-0-F-XS0-0700 332-1-010-0-F-XS0-0700 pin headers. * by MPE Garry* single-row, angled* thermoplastic, UL94V-0* contact material: copper alloy* contact surface: gold* rated current: 1.5A* rated voltage: 100VRMS/150V DC* temperature range: -40...+105°C* peak (10s): +260°C

Specifications

manufacturer
Manufacturer's name 332-1-010-0-...
Number of poles 10
Data Sheet

Unit price

0,243 €

Stock: 410
Further delivery:
CW 49/2024

Minimum order quantity 10 units or
multiples of 10.
