383-2-030-ABN-ZS

male connectors, straight, 383 by Garry

• according to DIN 41622 with solder contacts for PCB-mounting
• series: 383
• by Garry
• straight
• with solder pins
• 383-_-ABN_: contact type 15.5mm


• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)

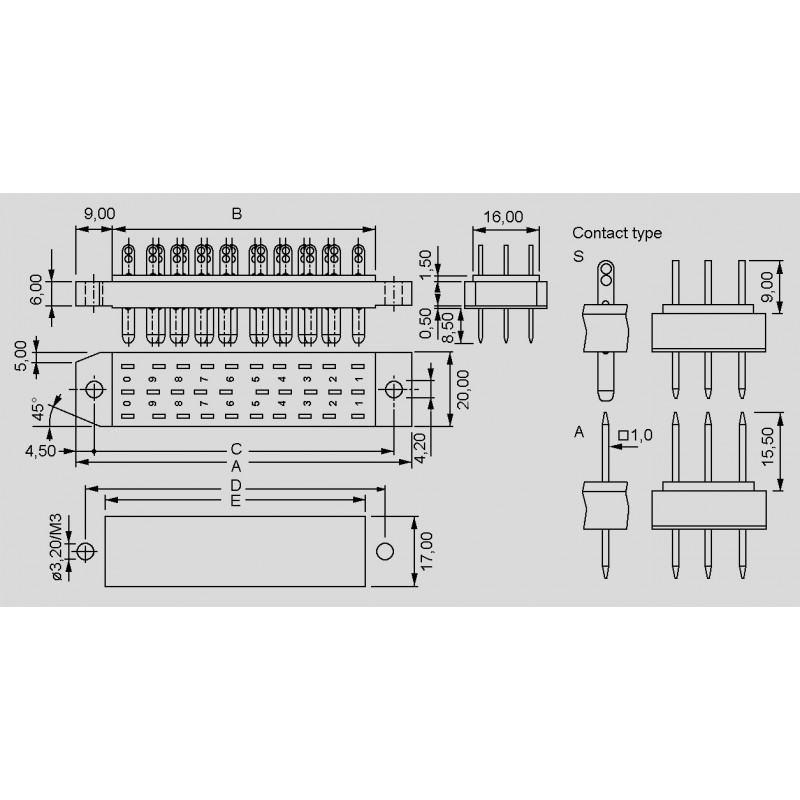

dimensions 383-2

383-2-030-ABN-ZS

42479 383-2-030-ABN-ZS 383-2-030-ABN-ZS male connectors, straight, 383 by Garry. • according to DIN 41622 with solder contacts for PCB-mounting• series: 383• by Garry• straight• with solder pins • 383-_-ABN_: contact type 15.5mm • insulation shell: thermoplastic (UL94V-0)• contact material: copper alloy, Ag 4µ• rated current: 10A• dielectric strength (for 1min.): 875VRMS• temperature range: -20 ...+85°C• max. process temperature: 230°C (5s)

Specifications

manufacturer
Manufacturer's name 383-2-030-ABN-ZS
Design solder pins
Number of poles 30
Contacts straight
Rows 3
A [mm] 83
E [mm] 66
B [mm] 65
D [mm] 74
C [mm] 74
Data Sheet

Unit price

19,29 €

Stock: 0
Further delivery:
CW 10/2026

Minimum order quantity 100 units or
multiples of 100.
