PSA 3,96 3-polig

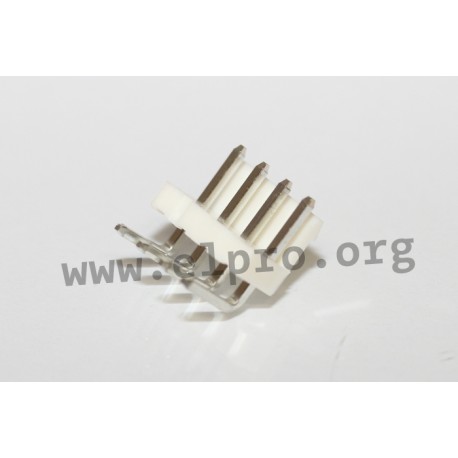

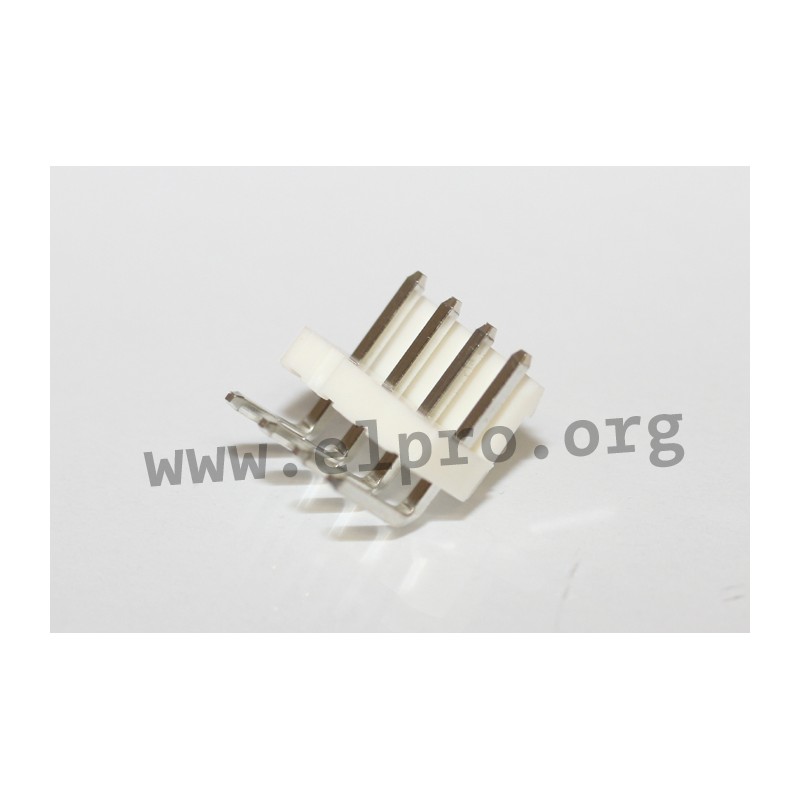

MPE Garry pin header series 580

  • angled type nylon pin strips (90°)
  • insulator made of nylon 66 (UL94V-0)
  • with tinned contacts made of brass
  • temperature range: -25 to +85°C
  • dielectric strength (1min): 1500VAC
  • rated current: 5A
  • rated voltage: 250VRMS/VDC
  • pitch: 3,96mm

Matching connectors

PSA 3,96

PSA 3,96 3-polig

11600 PSA 3,96 3-polig 580-4-003-0-T-BS0 580-4-003-0-T-BS0 MPE Garry pin header series 580. angled type nylon pin strips (90°) insulator made of nylon 66 (UL94V-0) with tinned contacts made of brass temperature range: -25 to +85°C dielectric strength (1min): 1500VAC rated current: 5A rated voltage: 250VRMS/VDC pitch: 3,96mm Matching connectors

Specifications

manufacturer
Manufacturer's name 580-4-003-0-T-BS0
Number of poles 3
A [mm] 11,88
Width [mm] 7,92
Data Sheet

Unit price

0,221 €

Stock: 1180
Next incoming goods:
CW 17/2026
3000 units

Further delivery:
CW 27/2026

Minimum order quantity 1 to 80 units or multiples of 100 plus 0 to 80 .
