DS 15 A

simple version

• 90° angled
• insulating shell: PBT + 30% glass fiber, UL94V-0
• stamped brass contacts

contact surface
• plug side: selective flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated
• operating temperature range: -40...+105°C

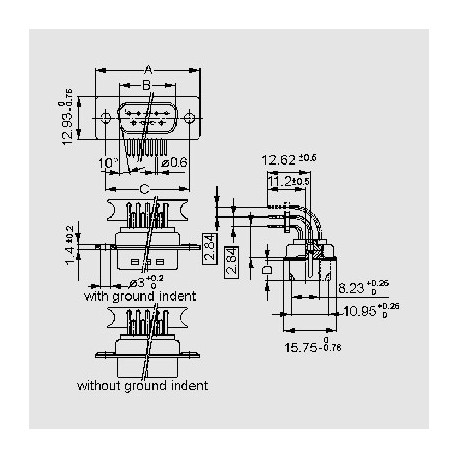

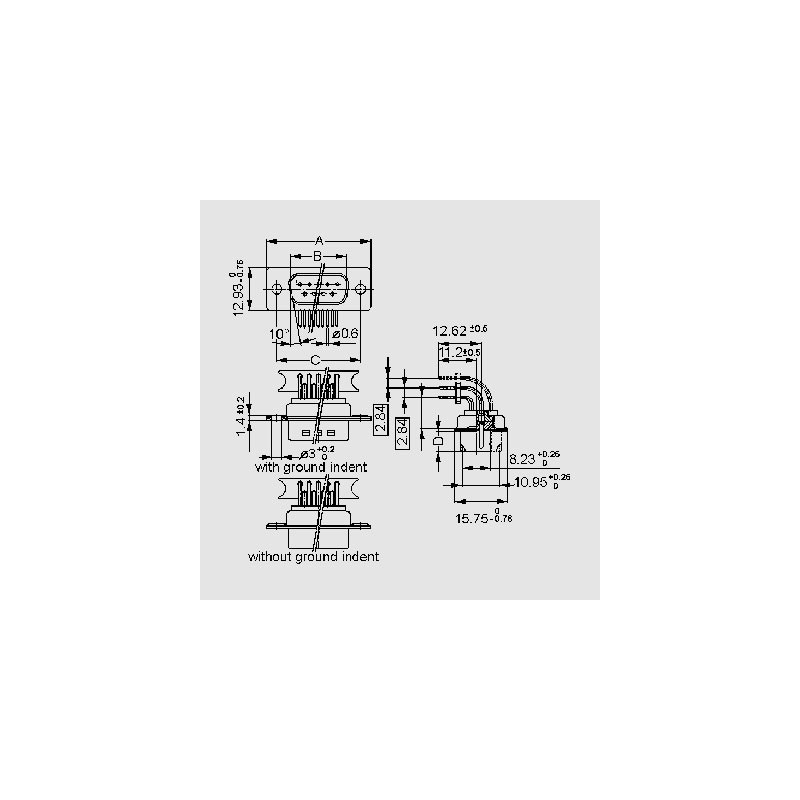

dimensions DS_A

DS 15 A

13574 DS 15 A DS 15 A simple version. • 90° angled• insulating shell: PBT + 30% glass fiber, UL94V-0• stamped brass contactscontact surface• plug side: selective flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated• operating temperature range: -40...+105°C

Discontinued items. Only remainder of stock available.

Specifications

Number of poles 15
A [mm] 39,52
Width [mm] 25,12
D [mm] 6,12
C [mm] 33,3

Unit price

1,16 €

Stock: 336

Minimum order quantity 1 to 16 units or multiples of 40 plus 0 to 16 .
