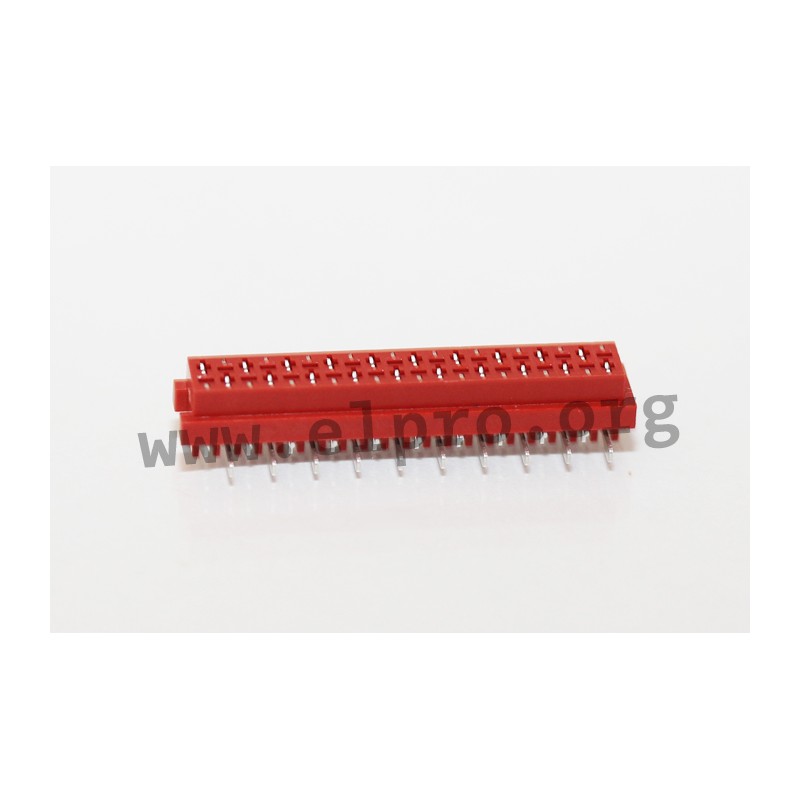

BL 2/15-0530 18-polig

SMD female PCB connectors

• series Micro-Part by MPE Garry
• pitch: 1.27mm
• housing material: thermoplastic, high temperature
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tin-plated
• breakdown voltage (1min.): 1000 VRMS
• rated current: 1.5A
• temperature range: -40 to +105°C

suitable pin headers MicroPart and MicroMaTch by MPE Garry

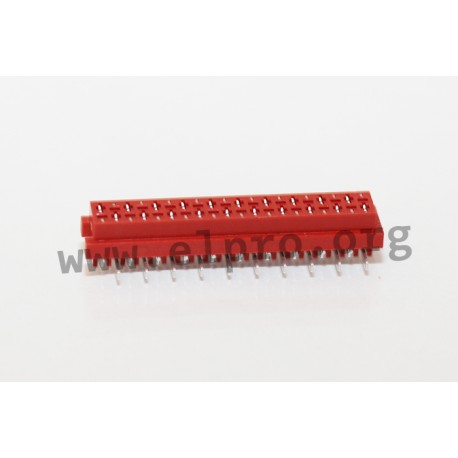

BL 2/15-0530 series

BL 2/15-0530 18-polig

106694 BL 2/15-0530 18-polig 374-1-018-0-NTX-KT0 374-1-018-0-NTX-KT0 SMD female PCB connectors. • series Micro-Part by MPE Garry• pitch: 1.27mm• housing material: thermoplastic, high temperature• colour: red• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tin-plated• breakdown voltage (1min.): 1000 VRMS• rated current: 1.5A• temperature range: -40 to +105°Csuitable pin headers MicroPart and MicroMaTch by MPE Garry

Specifications

manufacturer
Manufacturer's name 374-1-018-0-...
A [mm] 27,48
Outer thread length [mm] 18
D [mm] 21,59
B [mm] 24,48
C [mm] 23,38
Data Sheet

Unit price

0,164 €

Stock: 0
Further delivery:
CW 24/2026

Minimum order quantity 5.016 units or
multiples of 5.016.
