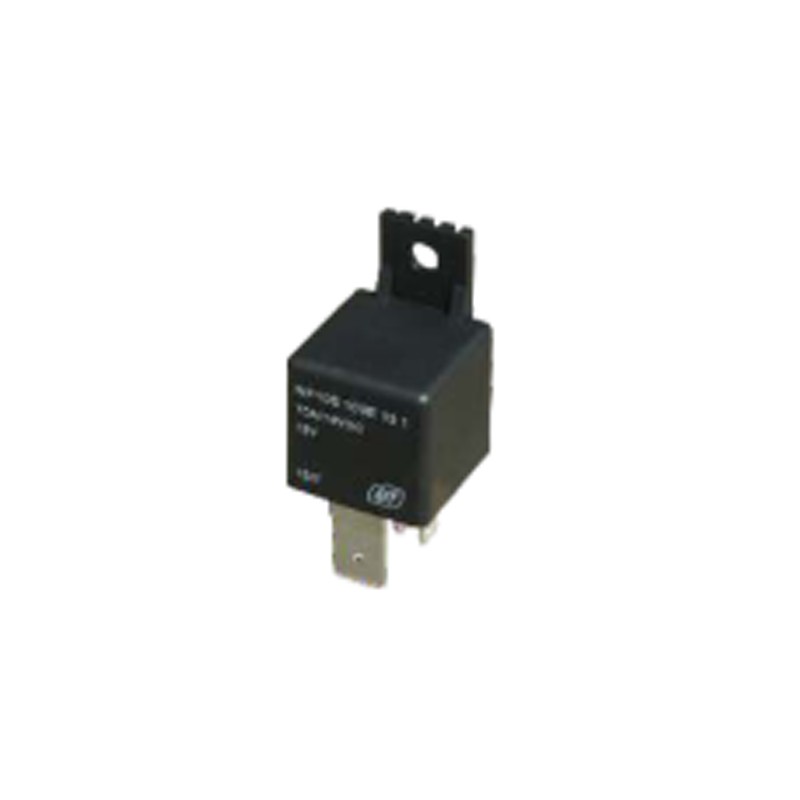

NF105-100E12SP

NF motor vehicle relays series NF105

These relays have small demensions but they still are suitable for heavy contact load (80A). They have a ISO based terminallayout, they are available in a type for PC board mounting (NF105-100E12SP) and in a plug in type (NF105-100E121). We offer the following types of this Nf series: NF105-100E121 and NF105-100E12SP.

  • maximal switching current: 80A
  • switching power: 1120W
  • maximal switching voltage: 75V DC
  • contact type: 1x normally open contact
  • contact material: Ag alloy
  • contact resistance: 30mOhm
  • isolation resistance: 100MOhm
  • operate / drop out time: 10/5ms
  • test voltage: 1000V (inductor / contact), 500V (contact / contact)
  • endurance: 1x107 (mechanical), 1x105 (electrical)
  • operating temperature: -40 to +125°C
  • weight: 48g (NF105-100E121), 46g (NF105-100E12SP)
  • dimensions: 29x29x26,5mm

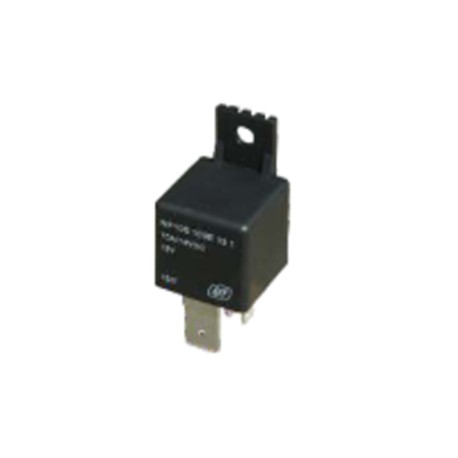

NF105-100E12SP, NF motor vehicle relays, 80A, 1x normally open contact, NF105 series

NF105-100E12SP

246920 NF105-100E12SP NF105-100E12SP NF motor vehicle relays series NF105. These relays have small demensions but they still are suitable for heavy contact load (80A). They have a ISO based terminallayout, they are available in a type for PC board mounting (NF105-100E12SP) and in a plug in type (NF105-100E121). We offer the following types of this Nf series: NF105-100E121 and NF105-100E12SP. maximal switching current: 80A switching power: 1120W maximal switching voltage: 75V DC contact type: 1x normally open contact contact material: Ag alloy contact resistance: 30mOhm isolation resistance: 100MOhm operate / drop out time: 10/5ms test voltage: 1000V (inductor / contact), 500V (contact / contact) endurance: 1x107 (mechanical), 1x105 (electrical) operating temperature: -40 to +125°C weight: 48g (NF105-100E121), 46g (NF105-100E12SP) dimensions: 29x29x26,5mm

Specifications

manufacturer
Manufacturer's name NF105-100E12SP
Nominal voltage [V DC] 12
Coil resistance [Ω] 80
Max. operating voltage [V DC] 16
Response voltage [V] 7,8
Nominal capacity [mW] 1800
Data Sheet

Unit price

2,69 €

Stock: 100
Further delivery:
CW 16/2026

Minimum order quantity 10 units or
multiples of 10.
