Übertrager 6,3+6,3:1+1

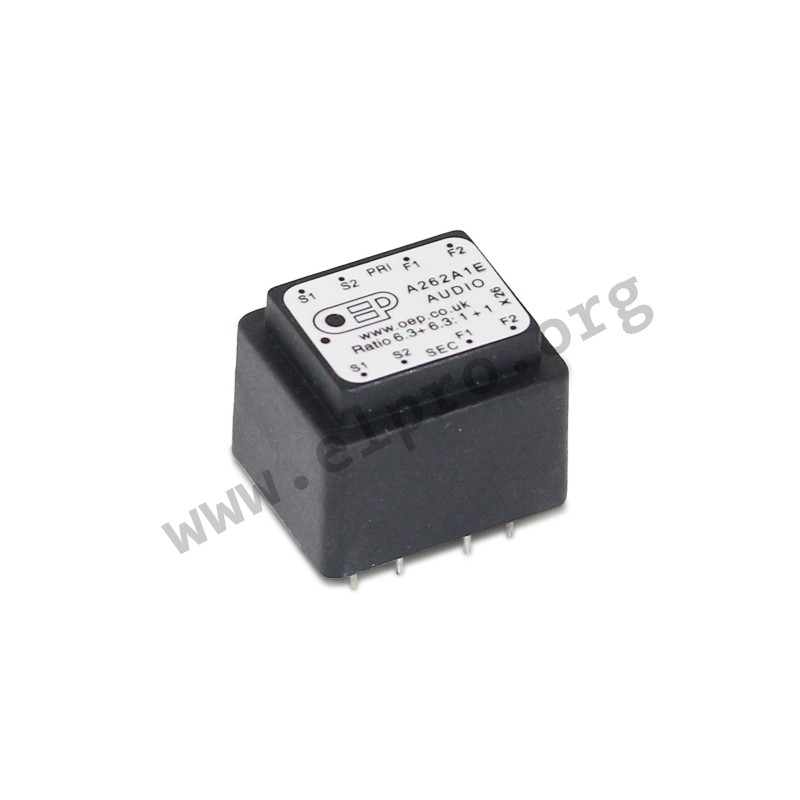

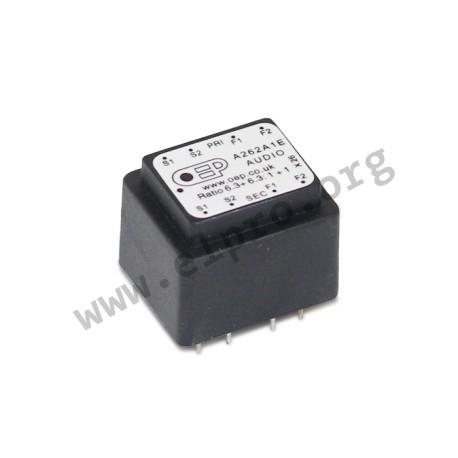

OEP transformer series A262A1E

Audio transformers for PCB mounting. These microphone input transformers are suitable for impedance matching. We offer the type A262A1E of this OEP series.

  • impedance ratio: 150 / 600 : 3,75 / 15
  • turns ratio: 6,3 + 6,3 : 1 + 1
A262A1E, OEP PCB transformers, audio, 6,3+6,3:1+1, A262A1E series

Übertrager 6,3+6,3:1+1

104774 Übertrager 6,3+6,3:1+1 A262A1E A262A1E OEP transformer series A262A1E. Audio transformers for PCB mounting. These microphone input transformers are suitable for impedance matching. We offer the type A262A1E of this OEP series. impedance ratio: 150 / 600 : 3,75 / 15 turns ratio: 6,3 + 6,3 : 1 + 1

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name A262A1E
Primary DC resistance [Ω] 10,3+10,3
Secondary DC resistance [Ω] 0,37+0,37
Data Sheet

Unit price

18,20 €

Stock: 22
