> Semiconductors>LCD displays>Dot matrix modules>OLED, 2 lines, 40 characters>DEP 40201-Y

Manufacturers

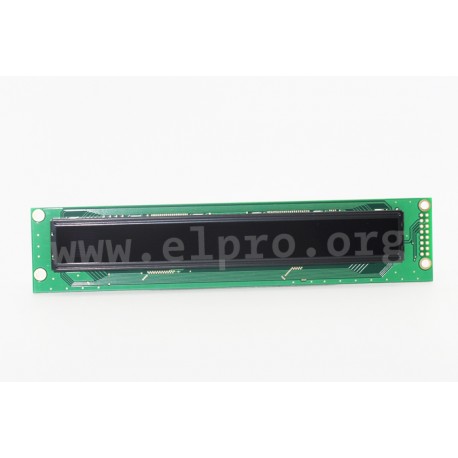

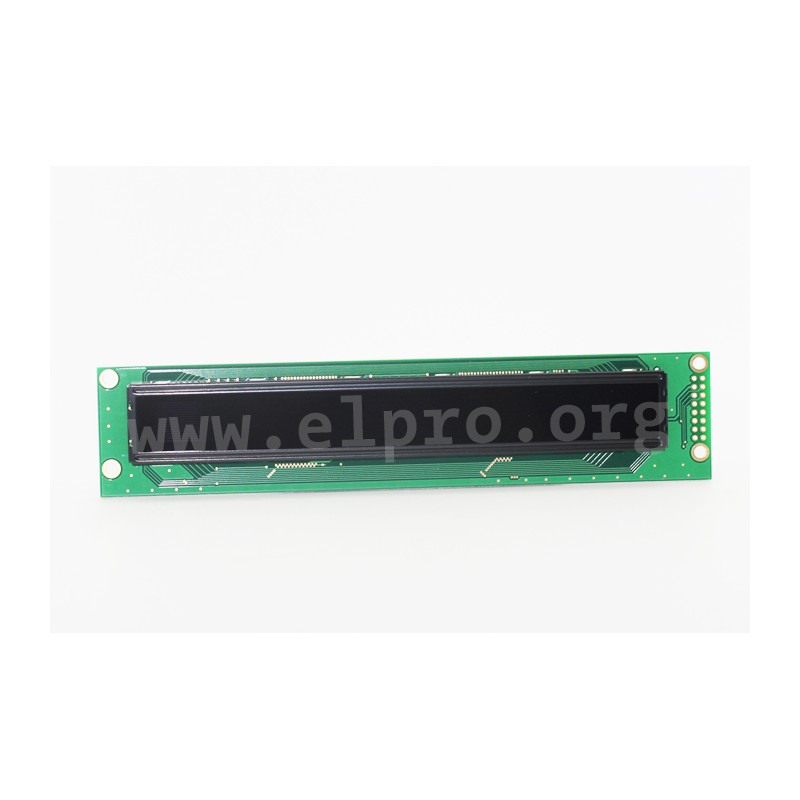

DEP 40201-Y

OLED dot matrix modules

• dot matrix modules with 2 lines and 40 characters
• high contrast OLED display
• characters: yellow
• by Display Electronic
• operating lifetime: upt to 100.000h (min 90cd/m²)
• controller driver HD44780 compatible resp. SSD1311
• 1/16 duty cycle
• interface for I²C/SPI, 4- or 8-bit data bus
• supply voltage: 5V
• operating temperature range: -40 to +80°C

P

DEP 40201-Y

106208 DEP 40201-Y DEP40201-Y DEP40201-Y OLED dot matrix modules. • dot matrix modules with 2 lines and 40 characters• high contrast OLED display• characters: yellow• by Display Electronic• operating lifetime: upt to 100.000h (min 90cd/m²)• controller driver HD44780 compatible resp. SSD1311• 1/16 duty cycle• interface for I²C/SPI, 4- or 8-bit data bus• supply voltage: 5V• operating temperature range: -40 to +80°C

Specifications

manufacturer
Manufacturer's name DEP40201-Y
Pixel size [mm] 3,05x5,55
Background black
Illumination yellow
Field of view [mm] 154,4x16,5
Dimensions [mm] 182x38,5x6,3
Data Sheet

Unit price

68,69 €

Stock: 23
Further delivery:
CW 20/2024
