DEP 20401-Y

OLED dot matrix modules

• dot matrix modules with 4 lines and 20 characters
• high contrast OLED display
• characters: yellow
• by Display Electronic
• operating lifetime: up to 100.000h (min 80cd/m²)
• controller driver HD44780 compatible resp. SSD1311
• 1/16 duty cycle
• interface for I²C/SPI, 4- or 8-bit data bus
• supply voltage: 5V
• operating temperature range: -40 to +80°C

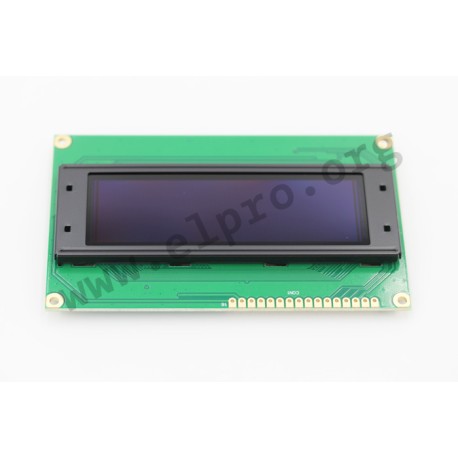

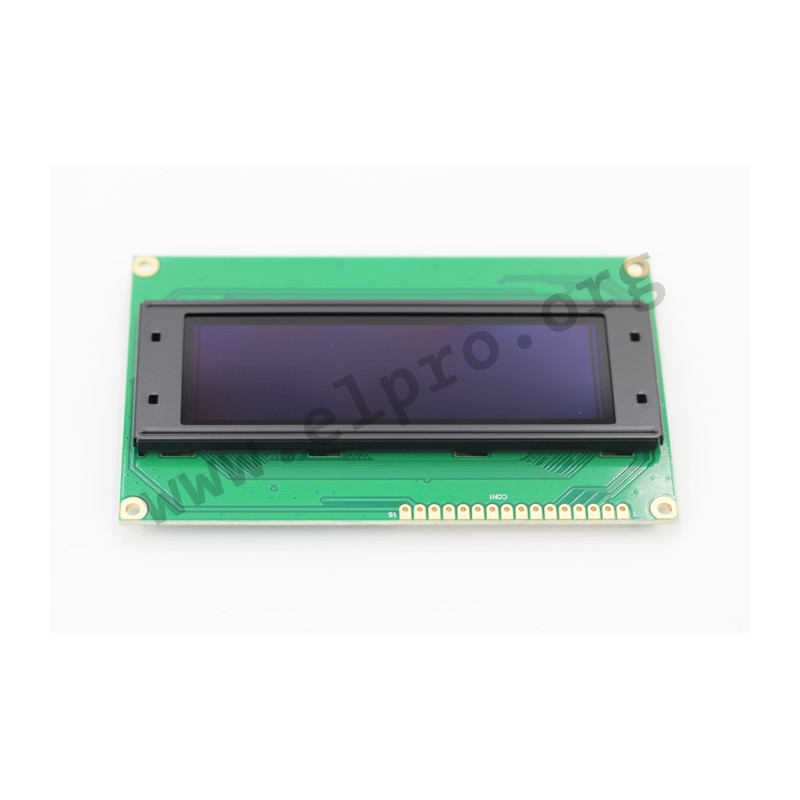

DEP20401-Y, OLED, 4 lines, 20 characters

DEP 20401-Y

106207 DEP 20401-Y DEP20401-Y DEP20401-Y OLED dot matrix modules. • dot matrix modules with 4 lines and 20 characters• high contrast OLED display• characters: yellow• by Display Electronic• operating lifetime: up to 100.000h (min 80cd/m²)• controller driver HD44780 compatible resp. SSD1311• 1/16 duty cycle• interface for I²C/SPI, 4- or 8-bit data bus• supply voltage: 5V• operating temperature range: -40 to +80°C

Specifications

manufacturer
Manufacturer's name DEP20401-Y
Pixel size [mm] 2,9x4,75
Background black
Illumination yellow
Field of view [mm] 77x25,2
Dimensions [mm] 98x60x6,3
Data Sheet

Unit price

44,29 €

Stock: 51
Further delivery:
CW 52/2025
