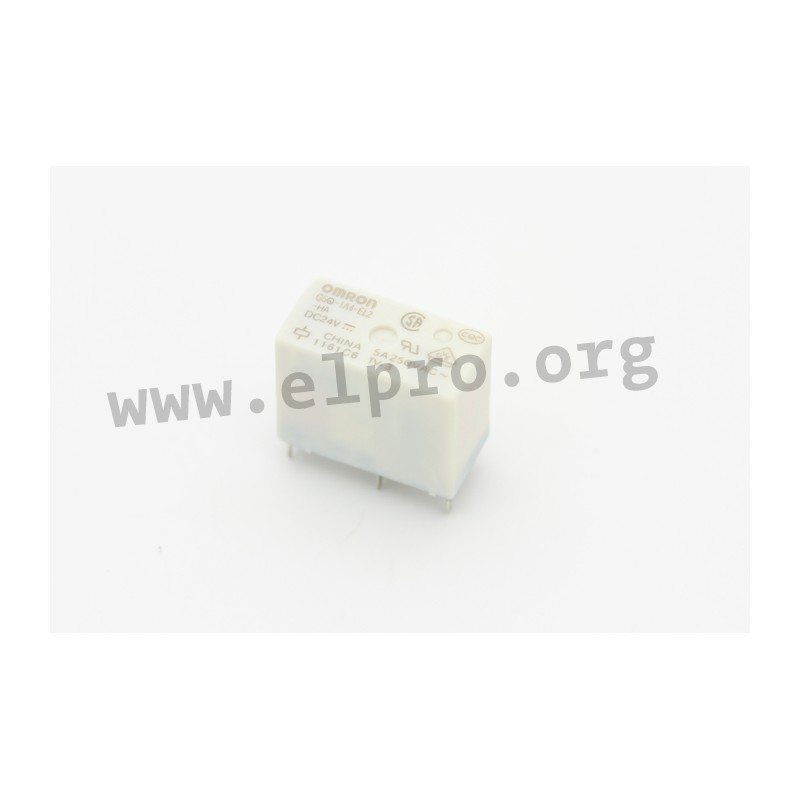

G5Q-1A4-EL2-HA-DC5

Omron PCB relay series G5Q-EL2 and G5Q-EL3

  • relays in a compact sized case (20,3x10,3x15,8mm)
  • in a completely sealed housing (RTII) with 10A switching current
  • with 1 normally open contact (SPST-NO)
  • comply with IEC/EN 60335-1 and coil insulation system class F (UL1446) as well as UL508 TV3 (G5Q-1A4-EL2_)
  • suitable for motor switching 3A with a high inrush current 30A (G5Q-1A4-EL3_)

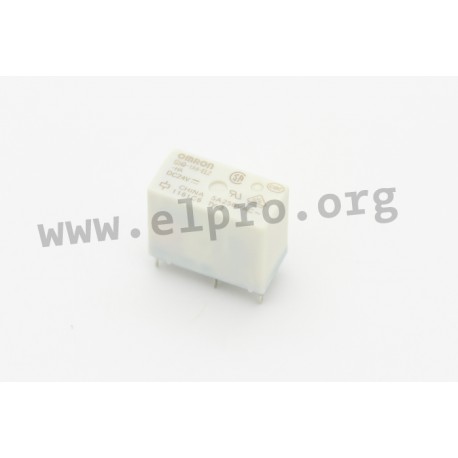

G5Q-1A4-EL2-HA-DC5, Omron PCB relays, 10A, 1 normally open contact, G5Q-EL2 and G5Q-EL3 series

G5Q-1A4-EL2-HA-DC5

234280 G5Q-1A4-EL2-HA-DC5 G5Q-1A4-EL2-HA DC5 G5Q-1A4-EL2-HA DC5 Omron PCB relay series G5Q-EL2 and G5Q-EL3. relays in a compact sized case (20,3x10,3x15,8mm) in a completely sealed housing (RTII) with 10A switching current with 1 normally open contact (SPST-NO) comply with IEC/EN 60335-1 and coil insulation system class F (UL1446) as well as UL508 TV3 (G5Q-1A4-EL2_) suitable for motor switching 3A with a high inrush current 30A (G5Q-1A4-EL3_)

Specifications

manufacturer
Manufacturer's name G5Q-1A4-EL2-HA DC5
Nominal voltage [V DC] 5
Coil resistance [Ω] 63
Type of contact 1...
Max. operating voltage [V] 9,5
Switching current [A] 10
Response voltage [V] 3,75
Release voltage [V] 0,25
Nominal capacity [mW] 400
Data Sheet

Unit price

0,837 €

Stock: 240
Further delivery:
CW 28/2026

Minimum order quantity 20 units or
multiples of 20.
