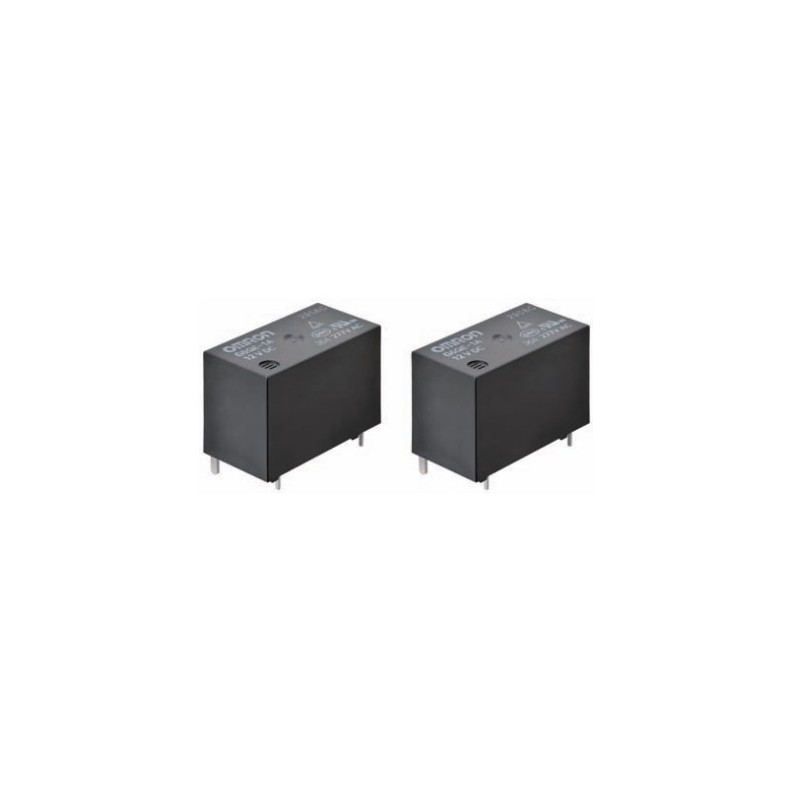

G6QE-1A-DC5

Omron PCB relay series G6QE

  • single pole power relays in a flux-proof design
  • an impulse withstand voltage of 10kV and a dielectric strength of 4,5kV between contact and coil
  • with 1 normally open contact (SPST-NO) and up to 10000 operations at 250V/36A resp. 100000 operations at 250V/30A
  • contact material: Ag alloy
  • switching current: 36A

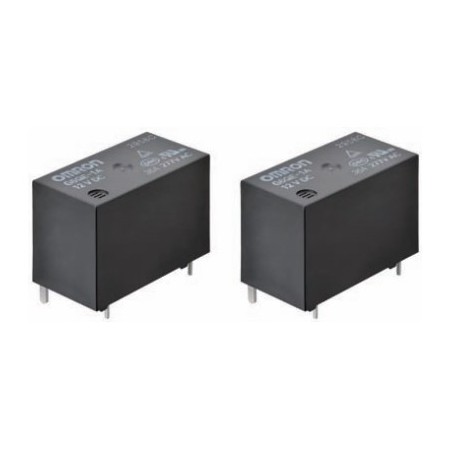

G6QE-1A-DC5, Omron PCB relays, 36A, 1 normally open contact, G6QE series

G6QE-1A-DC5

156186 G6QE-1A-DC5 G6QE-1A-DC5 Omron PCB relay series G6QE. single pole power relays in a flux-proof design an impulse withstand voltage of 10kV and a dielectric strength of 4,5kV between contact and coil with 1 normally open contact (SPST-NO) and up to 10000 operations at 250V/36A resp. 100000 operations at 250V/30A contact material: Ag alloy switching current: 36A

Specifications

manufacturer
Manufacturer's name G6QE-1A-DC5
Nominal voltage [V DC] 5
Coil resistance [Ω] 17,9
Max. operating voltage [V] 7
Switching current [A] 36
Response voltage [V] 3,5
Nominal capacity [mW] 1400
Data Sheet

Unit price

2,29 €

Stock: 180
Further delivery:
CW 41/2024

Minimum order quantity 10 units or
multiples of 10.
