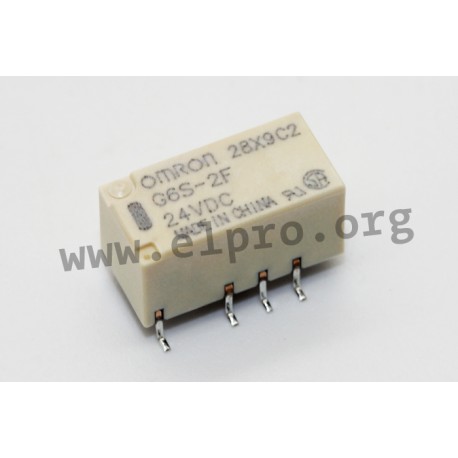

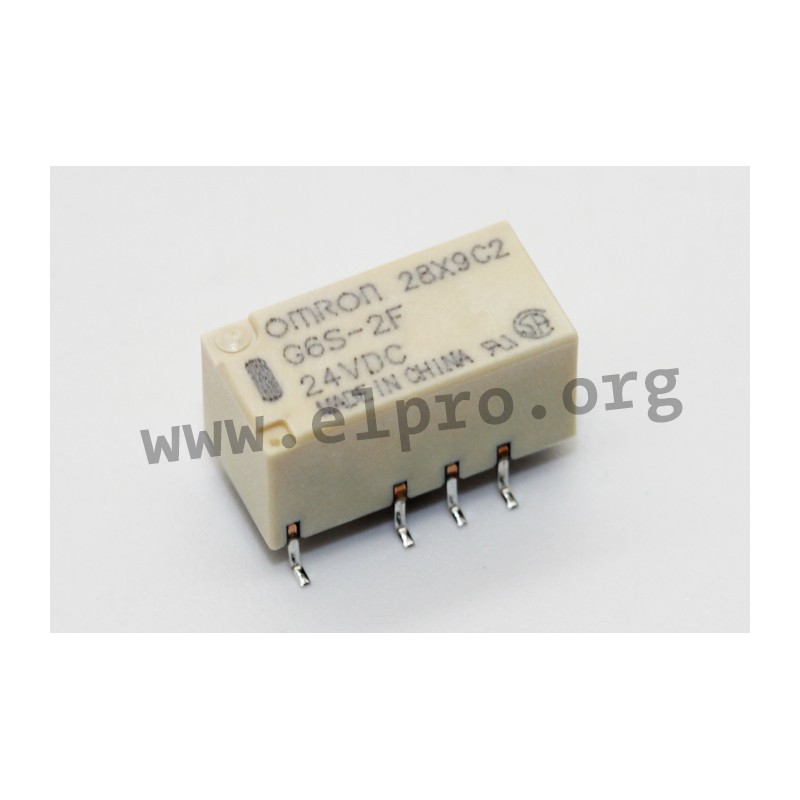

G6S2FTR12DC

Omron PCB relay series G6S

  • surface mount 2-pole relays for switching 2A signal loads
  • with 2 changeover contacts (DPDT), a high dielectric strength (2kV AC), a high impulse withstand voltage between coil and contacts (2,5kV) as well as a bifurcated crossbar
  • in a compact size (14,8x7,3x9,2mm)
  • suitable for various industrial applications
G6S2FTR12DC, Omron SMD relays, 2A, 2 changeover contacts, G6S series

G6S2FTR12DC

234278 G6S2FTR12DC G6S-2F-TR DC12 G6S-2F-TR DC12 Omron PCB relay series G6S. surface mount 2-pole relays for switching 2A signal loads with 2 changeover contacts (DPDT), a high dielectric strength (2kV AC), a high impulse withstand voltage between coil and contacts (2,5kV) as well as a bifurcated crossbar in a compact size (14,8x7,3x9,2mm) suitable for various industrial applications

Specifications

manufacturer
Manufacturer's name G6S-2F-TR DC12
Nominal voltage [V DC] 12
Coil resistance [Ω] 1028
Type of contact 2 changeover...
Max. operating voltage [V] 24
Switching current [A] 2
Response voltage [V] 9
Release voltage [V] 1,2
Data Sheet

Unit price

1,30 €

Stock: 660
Further delivery:
CW 28/2026

Minimum order quantity 20 units or
multiples of 20.
