ECWFG2J155KA

Panasonic MKP capacitor series ECWFG

MKP capacitors with a non-combustible resin. These capacitors are equipped with a safety function and have a high moisture and thermal shock resistance. They are AEC-Q200 compliant and suited for automotive applications.

  • rated voltage (UN): 630V DC
  • test voltage (60s): 1,5xUN
  • capacitance tolerance ECWFG_P_ and ECWFG_J_: ±5%
  • capacitance tolerance ECWFG_Q_ and ECWFG_K_: ±10%
  • operating temperature range: -40 to +110°C

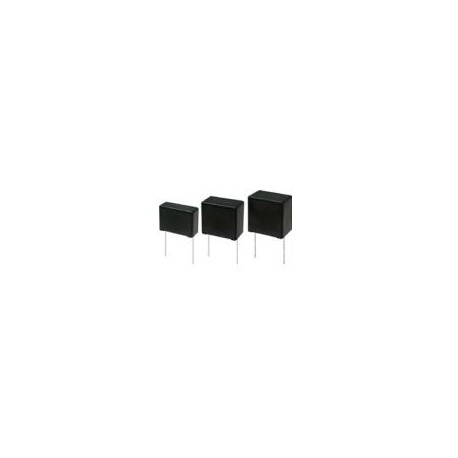

ECWFG2J155KA, Panasonic MKP capacitors, for automotive, ECWFG series

ECWFG2J155KA

127131 ECWFG2J155KA ECWFG2J155KA Panasonic MKP capacitor series ECWFG. MKP capacitors with a non-combustible resin. These capacitors are equipped with a safety function and have a high moisture and thermal shock resistance. They are AEC-Q200 compliant and suited for automotive applications. rated voltage (UN): 630V DCtest voltage (60s): 1,5xUNcapacitance tolerance ECWFG_P_ and ECWFG_J_: ±5%capacitance tolerance ECWFG_Q_ and ECWFG_K_: ±10%operating temperature range: -40 to +110°C

Specifications

manufacturer
Manufacturer's name ECWFG2J155KA
Rated capacitance [µF] 1,5
Pitch 27,5
Nominal voltage [V] 630
Data Sheet

Unit price

0,807 €

Stock: 0
Further delivery:
CW 46/2024

Minimum order quantity 50 units or
multiples of 50.
