ERA8AEB123V

Panasonic SMD resistor series ERA8A

Thin film resistors in a 1206 SMD housing complying with IEC60115-8, JISC5201-8 as well as EIAJRC-2133B. They hve a high reliability as well as a low temperature coefficient (±25ppm/°C). We offer various types of this Panasonic series.

  • rated power: 0,25W (85°C)
  • tolerance: ±0,1%

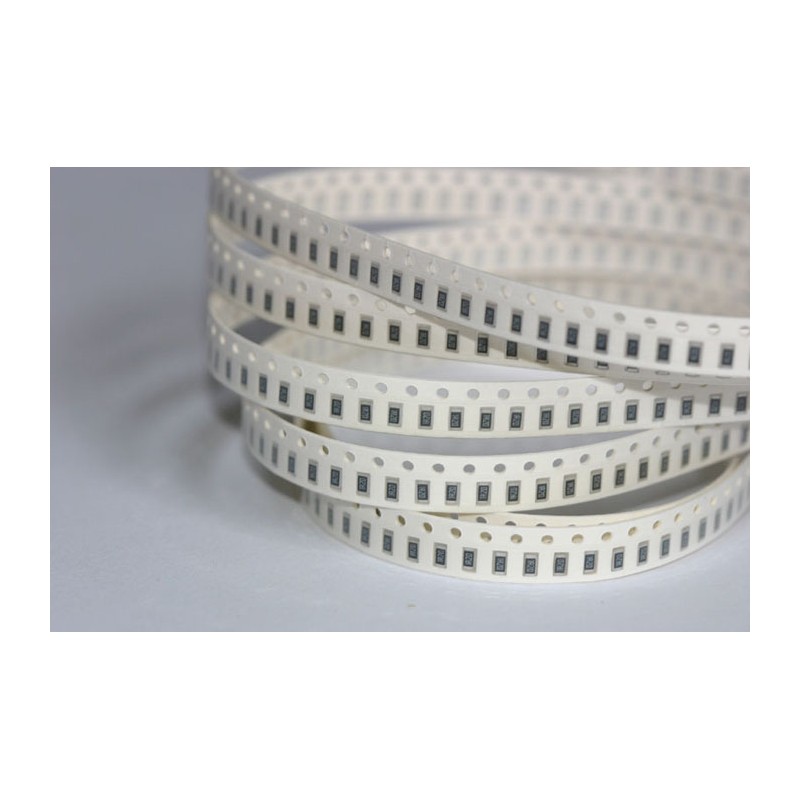

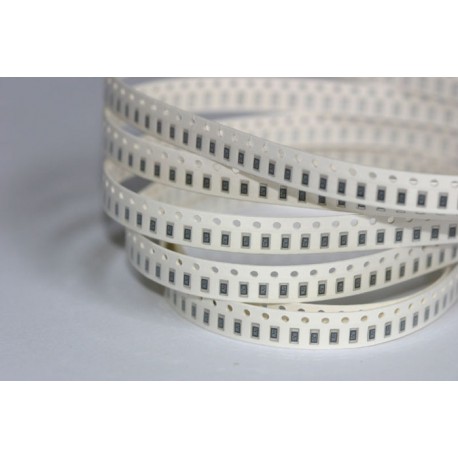

  • taped
ERA8AEB123V, Panasonic SMD resistors, 1206 housing, 0,1%, 0,25W, ERA8A series

ERA8AEB123V

107827 ERA8AEB123V ERA8AEB123V Panasonic SMD resistor series ERA8A. Thin film resistors in a 1206 SMD housing complying with IEC60115-8, JISC5201-8 as well as EIAJRC-2133B. They hve a high reliability as well as a low temperature coefficient (±25ppm/°C). We offer various types of this Panasonic series. rated power: 0,25W (85°C) tolerance: ±0,1% taped

Specifications

manufacturer
Manufacturer's name ERA8AEB123V

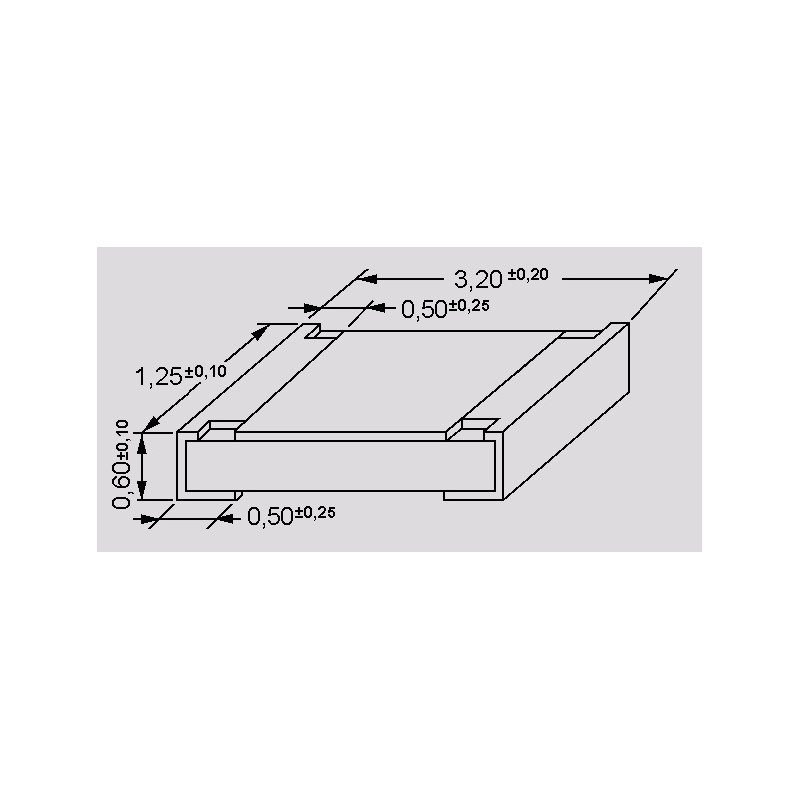

Case 1206
Design taped
Resistance [Ω] 12k
Power [W] 0,25
Tolerance [%] 0,1
Data Sheet

Unit price

0,238 €

Stock: 900
Next incoming goods:
CW 37/2026
5000 units

Further delivery:
CW 21/2027

Minimum order quantity 100 units or
multiples of 100.
