EVPBB0AAB000

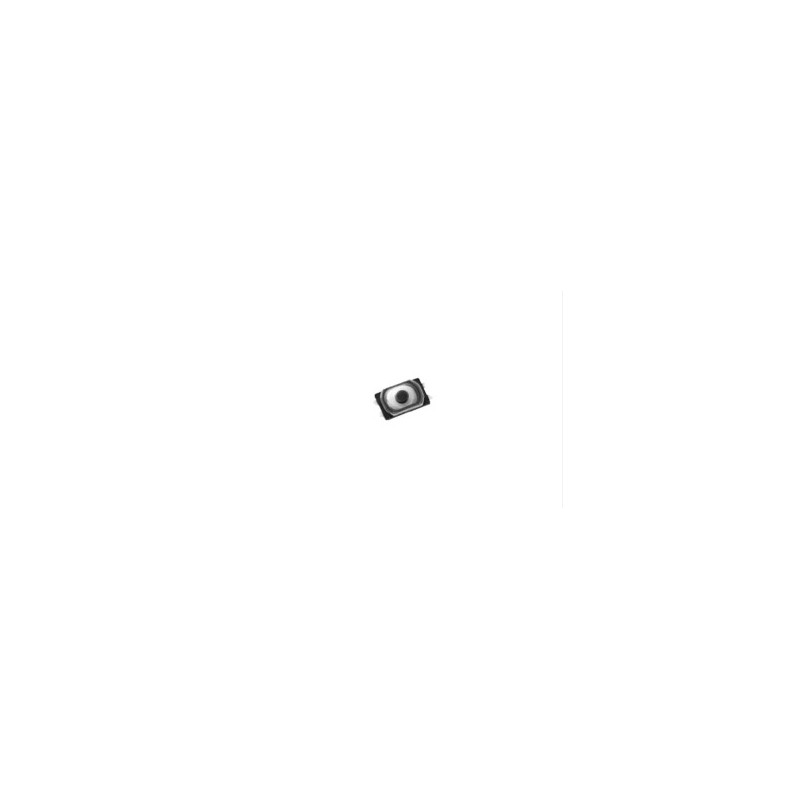

Panasonic SMD switch series EVPBB

Tactile switches with external dimensions of 2,6x1,6mm and a height of 0,5 resp. 0,55mm (EVPBB4_). These switches are suitable for direct PCB mounting (SMD) and have a operating force of 0,7N (EVPBB0_) resp. 1N (EVPBB1_) or 2,4N (EVPBB4_). They are built as normally open contacts (1xNO) and have a service life of at least 200.000 (EVPBB0_) resp. 500.000 actuation cycles (EVPBB1_/EVPBB4_). We offer the following types of this Panasonic series: EVPBB0AAB000, EVPBB1AAB000 and EVPBB4A9B000.

  • dimensions: 2,6x1,6mm
  • operating force: 0,7N / 1N / 2,4N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
EVPBB0AAB000, Panasonic tact switches, SMD, 2,6x1,6mm, 0,7N/1N/2,4N, EVPBB series

EVPBB0AAB000

242526 EVPBB0AAB000 EVPBB0AAB000 Panasonic SMD switch series EVPBB. Tactile switches with external dimensions of 2,6x1,6mm and a height of 0,5 resp. 0,55mm (EVPBB4_). These switches are suitable for direct PCB mounting (SMD) and have a operating force of 0,7N (EVPBB0_) resp. 1N (EVPBB1_) or 2,4N (EVPBB4_). They are built as normally open contacts (1xNO) and have a service life of at least 200.000 (EVPBB0_) resp. 500.000 actuation cycles (EVPBB1_/EVPBB4_). We offer the following types of this Panasonic series: EVPBB0AAB000, EVPBB1AAB000 and EVPBB4A9B000. dimensions: 2,6x1,6mm operating force: 0,7N / 1N / 2,4N rated voltage: 2 to 15V DC rated current: 10µA to 20mA

Specifications

manufacturer
Manufacturer's name EVPBB0AAB000
Operating force [N] 0,7
Dimensions [mm] 2,6x1,6
Data Sheet

Unit price

0,319 €

Stock: 100
Further delivery:
CW 31/2024

Minimum order quantity 25 units or
multiples of 25.
