EVQP7J01P

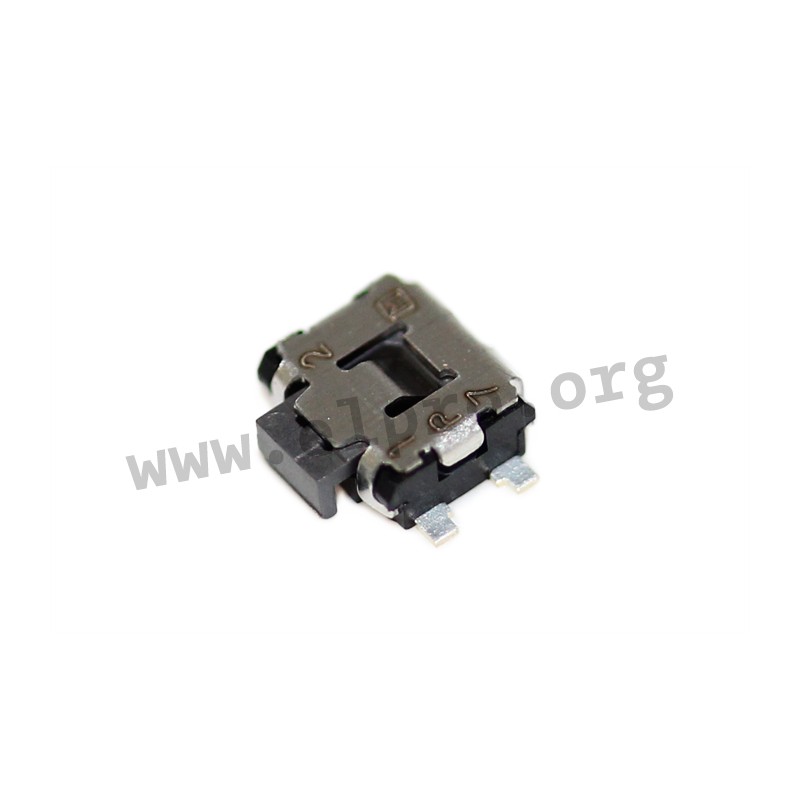

Panasonic SMD switch series EVQP7

Tactile switches with external dimensions of 3,5x2,9x1,35mm and an operating force of 1,6 resp. 2,2N. These switches are suitable for direct PCB mounting (SMD) and built as normally open contacts (1xNO). They have a service life of at least 100.000 actuation cycles as well as a strength enhanced push plate. We offer the following types of this Panasonic series: EVQP7A01P, EVQP7J01P, EVQP7C01P, EVQP7L01P, EVQP7B01P and EVQP7D01P.

  • dimensions: 3,5x2,9x1,35mm
  • operating force: 1,6 to 2,2N
  • rated voltage: 2 to 12V DC
  • rated current: 10µA to 50mA

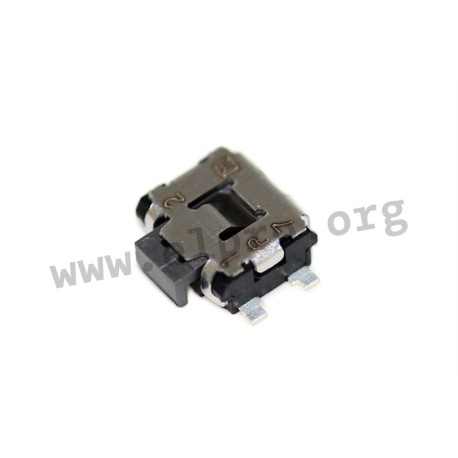

EVQP7J01P, Panasonic tact switches, SMD, 3,5x2,9mm, 1,6N/2,2N, EVQP7 series

EVQP7J01P

242581 EVQP7J01P EVQP7J01P Panasonic SMD switch series EVQP7. Tactile switches with external dimensions of 3,5x2,9x1,35mm and an operating force of 1,6 resp. 2,2N. These switches are suitable for direct PCB mounting (SMD) and built as normally open contacts (1xNO). They have a service life of at least 100.000 actuation cycles as well as a strength enhanced push plate. We offer the following types of this Panasonic series: EVQP7A01P, EVQP7J01P, EVQP7C01P, EVQP7L01P, EVQP7B01P and EVQP7D01P. dimensions: 3,5x2,9x1,35mm operating force: 1,6 to 2,2N rated voltage: 2 to 12V DC rated current: 10µA to 50mA

Specifications

manufacturer
Manufacturer's name EVQP7J01P
Operating force [N] 1,6
Dimensions [mm] 3,5x2,9x1,35
Data Sheet

Unit price

0,159 €

Stock: 100
Further delivery:
CW 31/2024

Minimum order quantity 25 units or
multiples of 25.
