EEEHB0J101P

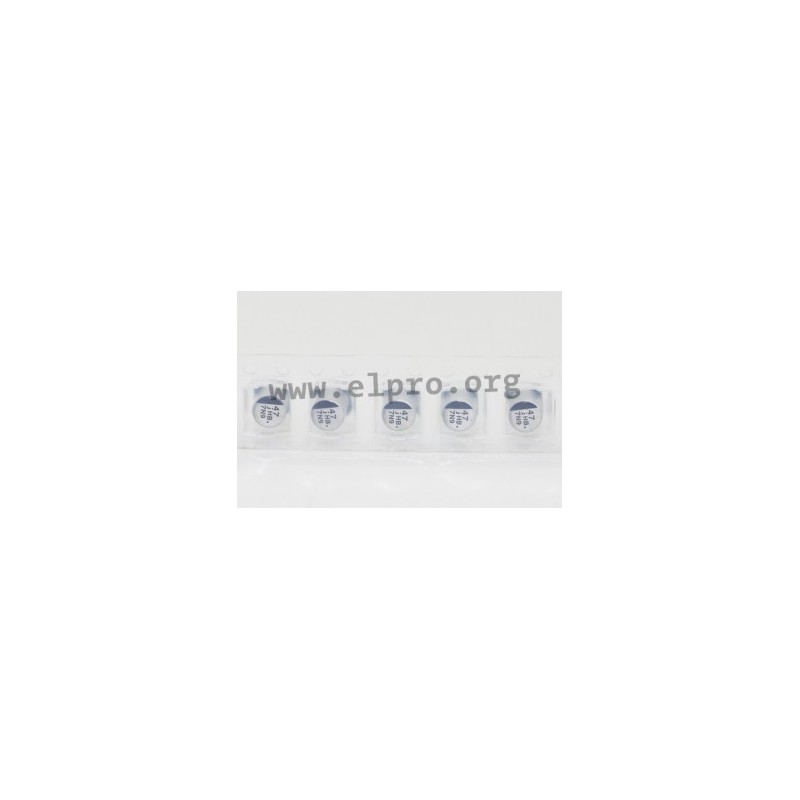

Panasonic electrolytic capacitor series HB

Taped aluminium caps with a high endurance at high temperatures (2000h at 105°C). These long life caps are suitable for direct PCB mounting as well as partly for lead-free relfow soldering (EEEHB_A_). We offer various types of this Panasonic series.

  • capacitance tolerance: ±20%
  • operating temperature: -40 to +105°C
  • service life (at 105°C): 2000h

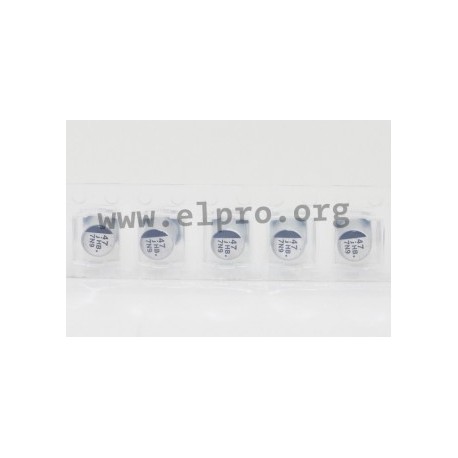

EEEHB0J101P, Panasonic electrolytic capacitors, SMD, 105°, 2000h, HB series

EEEHB0J101P

110778 EEEHB0J101P EEEHB0J101P Panasonic electrolytic capacitor series HB. Taped aluminium caps with a high endurance at high temperatures (2000h at 105°C). These long life caps are suitable for direct PCB mounting as well as partly for lead-free relfow soldering (EEEHB_A_). We offer various types of this Panasonic series. capacitance tolerance: ±20% operating temperature: -40 to +105°C service life (at 105°C): 2000h

Specifications

manufacturer
Manufacturer's name EEEHB0J101P
Reverse current [mA] 71
Nominal voltage [V DC] 6,3
Rated capacitance [µF] 100
Loss factor at 120Hz, 20°C 0,3
Diameter [mm] 6,3
Data Sheet

Unit price

0,132 €

Stock: 2300
Next incoming goods:
CW 23/2024
400 units

Further delivery:
CW 41/2024

Minimum order quantity 100 units or
multiples of 100.
