EEEHC1H2R2R

Panasonic capacitor series HC and HD

High temperature electrolytic capacitors with a long service life. These caps are taped and are suitable for direct PCB mounting. We offer various types of this Panasonic series.

  • lead-free reflow (EEEH_A_)
  • capacitance tolerance: ±20%
  • operating temperature: -55/-40 to +105°C
  • service life (at 105°C) EEEHC_: 3000 to 5000h
  • service life (at 105°C) EEEHD_: 5000h

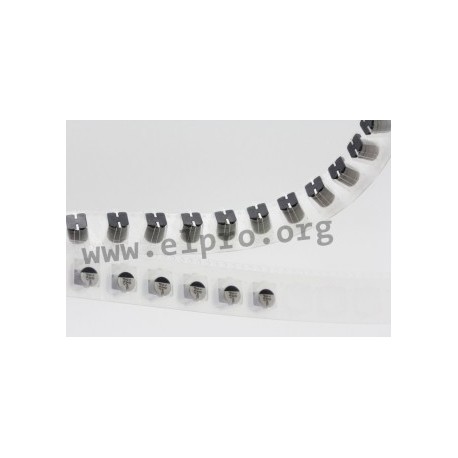

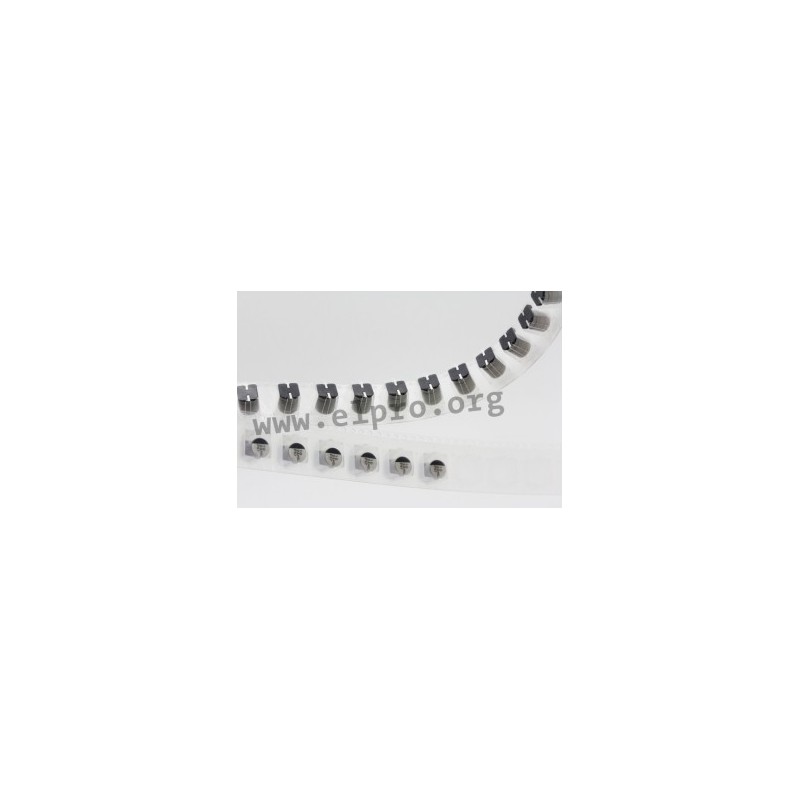

EEEHC1H2R2R, Panasonic electrolytic capacitors, SMD, 105°C, 5000h, HC and HD series

EEEHC1H2R2R

257710 EEEHC1H2R2R EEEHC1H2R2R Panasonic capacitor series HC and HD. High temperature electrolytic capacitors with a long service life. These caps are taped and are suitable for direct PCB mounting. We offer various types of this Panasonic series.  lead-free reflow (EEEH_A_) capacitance tolerance: ±20% operating temperature: -55/-40 to +105°C service life (at 105°C) EEEHC_: 3000 to 5000h service life (at 105°C) EEEHD_: 5000h

Specifications

manufacturer
Manufacturer's name EEEHC1H2R2R
Design B
Nominal voltage [V DC] 50
Rated capacitance [µF] 2,2
Diameter [mm] 4
Length [mm] 5,8

Unit price

0,106 €

Stock: 0
Further delivery:
CW 53/2026

Minimum order quantity 100 units or
multiples of 100.
