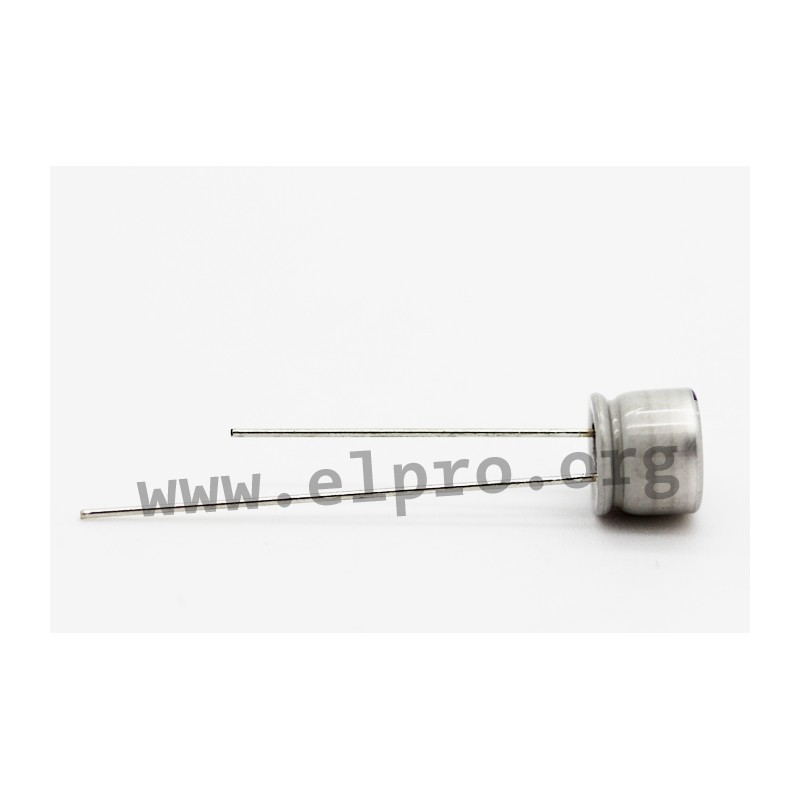

20SEPF390M+TSS

Panasonic electrolytic capacitor series SEPF and SEPG

  • halogen-free polymer aluminium solid capacitors
  • radial type
  • an ideal frequency characteristic and a very good noise reduction capability due to highly conductive polymers
  • with a high reliability, a high heat resistance and a long service life (5000h at 105°C)
  • operating temperature: -55 to +105°C
  • capacitance tolerance: ±20%
  • rated voltage: 16 to 35V DC
  • rated capacity: 22 to 1000µF
20SEPF390M+TSS, Panasonic electrolytic capacitors, radial, 105°C, OS-CON, SEPF and SEPG series

20SEPF390M+TSS

122109 20SEPF390M+TSS 20SEPF390M+TSS Panasonic electrolytic capacitor series SEPF and SEPG. halogen-free polymer aluminium solid capacitors radial type an ideal frequency characteristic and a very good noise reduction capability due to highly conductive polymers  with a high reliability, a high heat resistance and a long service life (5000h at 105°C) operating temperature: -55 to +105°C capacitance tolerance: ±20% rated voltage: 16 to 35V DC rated capacity: 22 to 1000µF

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 20SEPF390M+TSS
Nominal voltage [V DC] 20
Reverse current [A] 4,95
Loss factor at 120Hz, 25°C 0,12
Capacity [µF] 390
Pitch [mm] 3,5
D [mm] 8
L [mm] 12
Data Sheet

Unit price

0,597 €

Stock: 975

Minimum order quantity 25 units or
multiples of 25.
