10TPB220M

POSCAP polymer tantalum solid capacitors TPB by Panasonic

* low ESR
* style: taped
* POSCAP use high conductive polymer to achieve low equivalent series resistance (ESR), excellent noise reduction capability and ideal frequency characteristic
* POSCAP uses sintered tantalum for the anode, therefore it achived the lowest ESR level despite its low profile
* each capacitor has long service lifetime, high reliability and high heat resistance
* applications: noise removing, backup and bypass capacitors for digital equipment, cellular phone, personal computers, home appliance, automotive electric equipment, industrial eguipment, ets.
* rated voltage, max.: 6,3...10V DC
* capacitance tolerance: ±20%
* temperature range: -55°C...+105°C
* operating life (at 105°C): 2000h, size B2: 1000h
* by Panasonic

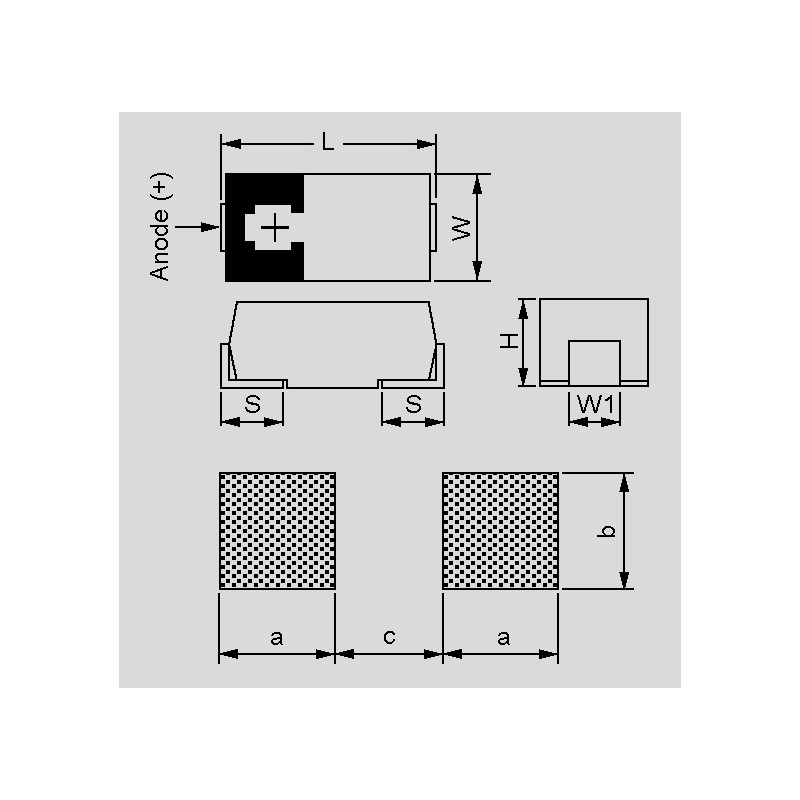

dimensions

10TPB220M

44532 10TPB220M 10TPB220M POSCAP polymer tantalum solid capacitors TPB by Panasonic. * low ESR* style: taped* POSCAP use high conductive polymer to achieve low equivalent series resistance (ESR), excellent noise reduction capability and ideal frequency characteristic* POSCAP uses sintered tantalum for the anode, therefore it achived the lowest ESR level despite its low profile* each capacitor has long service lifetime, high reliability and high heat resistance* applications: noise removing, backup and bypass capacitors for digital equipment, cellular phone, personal computers, home appliance, automotive electric equipment, industrial eguipment, ets.* rated voltage, max.: 6,3...10V DC* capacitance tolerance: ±20%* temperature range: -55°C...+105°C* operating life (at 105°C): 2000h, size B2: 1000h* by Panasonic

Specifications

manufacturer
Manufacturer's name 10TPB220M
Design d4
Reverse current [mA] 3000
Loss factor at 120Hz, 25°C 10%
Height [mm] 3,8
Nominal voltage [V] 10
Length [mm] 7,3
W [mm] 4,3
Data Sheet

Unit price

1,04 €

Stock: 575
Further delivery:
CW 40/2024

Minimum order quantity 25 units or
multiples of 25.
