TQ2SA-5V

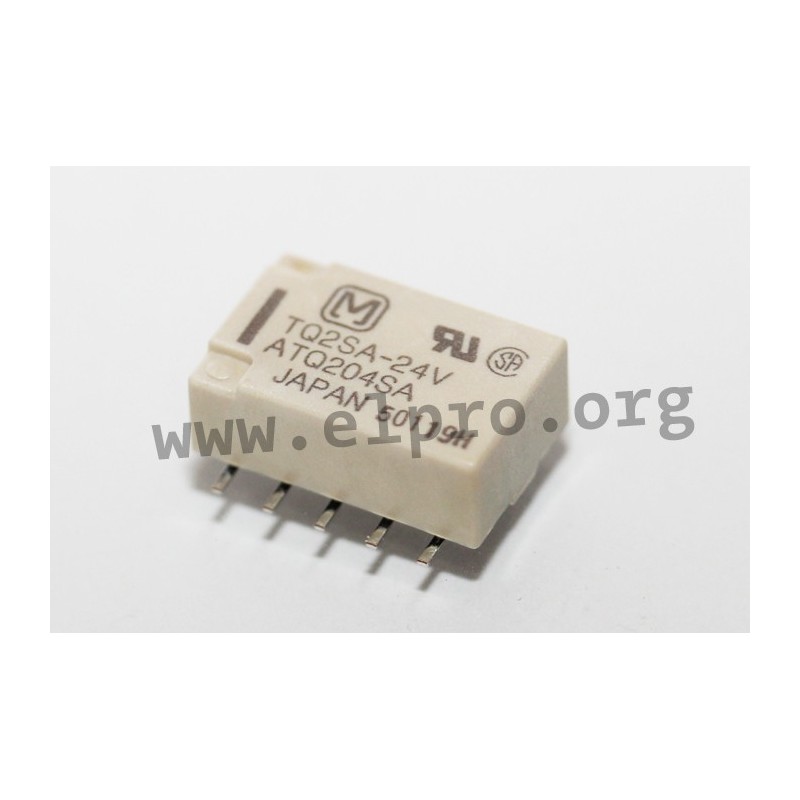

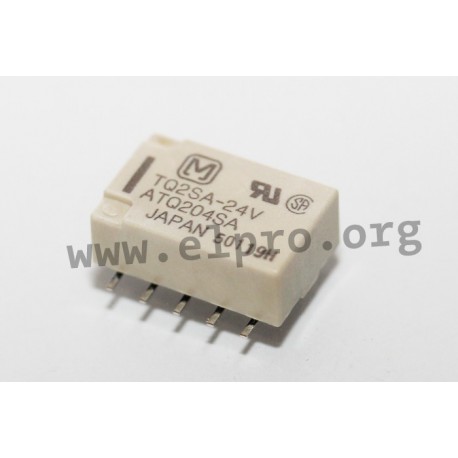

Panasonic SMD PCB relay series TQ

  • highly sensitive PCB relays
  • SMD type
  • with 2 changeover contacts (DPDT)
  • suitable for direct PCB mounting
  • with a high reliability due to gold-plated contacts
  • switching current: 2A

TQ2SA-5V

41585 TQ2SA-5V TQ2SA-5V Panasonic SMD PCB relay series TQ. highly sensitive PCB relays  SMD type with 2 changeover contacts (DPDT) suitable for direct PCB mounting with a high reliability due to gold-plated contacts switching current: 2A

Specifications

manufacturer
Manufacturer's name TQ2SA-5V
Rated current [mA] 28,1
Nominal voltage [V] 5
Nominal resistance [Ω] 178
Switching current [A] 2
Response voltage [V] 3,75
Release voltage [V] 0,5
Nominal capacity [mW] 140
Data Sheet

Unit price

2,09 €

Stock: 4223
Further delivery:
CW 24/2024

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
