> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 145°C, low ESR, polymer hybrid aluminium, ZE series>EEHZE1J330P

Manufacturers

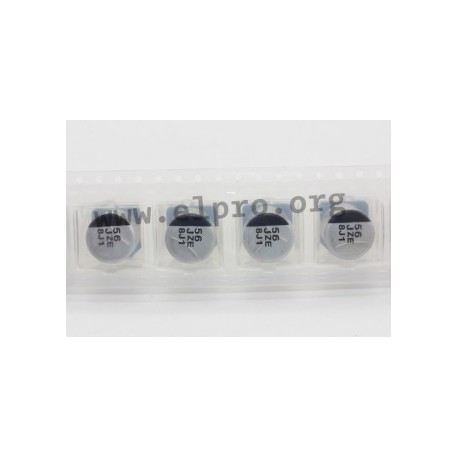

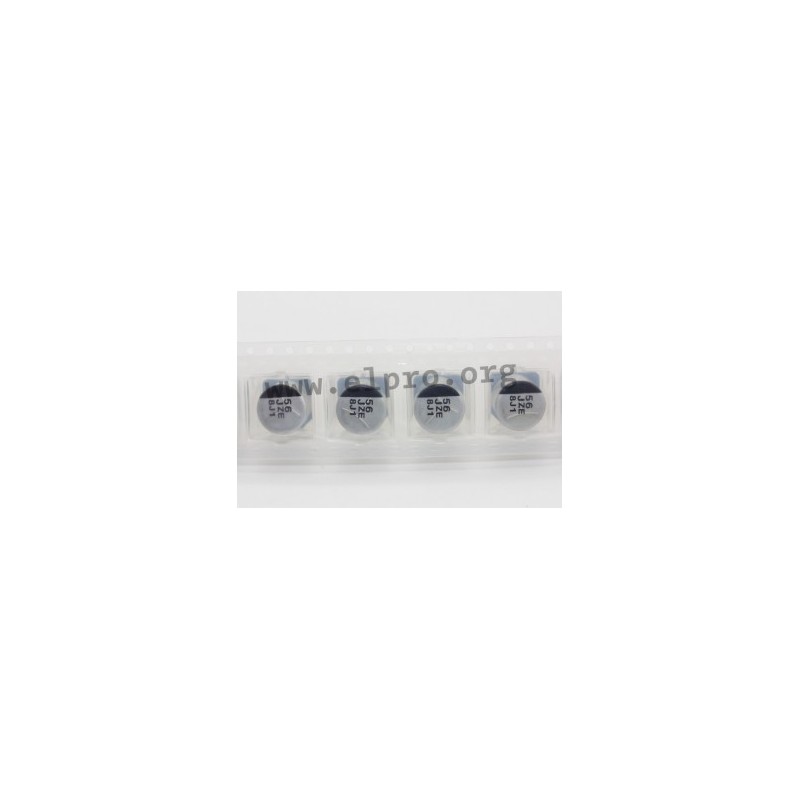

EEHZE1J330P

Panasonic electrolytic capacitor series ZE

AEC-Q200 compliant surface-mounted polymer hybrid aluminium electrolytic capacitors with a low ESR and a high ripple current. They have a capacitance tolerance of 20%, as well as a high dielectric strength and a service life of 2000h at 145°C. We offer various types of this Panasonic series.

  • nominal voltage: 25 to 63V DC
  • operating temperature: -55 to +145°C
  • taped
EEHZE1J330P, Panasonic electrolytic capacitors, SMD, 145°C, low ESR, polymer hybrid aluminium, ZE series

EEHZE1J330P

119401 EEHZE1J330P EEHZE1J330P Panasonic electrolytic capacitor series ZE. AEC-Q200 compliant surface-mounted polymer hybrid aluminium electrolytic capacitors with a low ESR and a high ripple current. They have a capacitance tolerance of 20%, as well as a high dielectric strength and a service life of 2000h at 145°C. We offer various types of this Panasonic series. nominal voltage: 25 to 63V DC operating temperature: -55 to +145°C taped

Specifications

manufacturer
Manufacturer's name EEHZE1J330P
Nominal voltage [V DC] 63
Capacity [µF] 33
Data Sheet

Unit price

1,05 €

Stock: 490
Further delivery:
CW 20/2026

Minimum order quantity 10 units or
multiples of 10.
