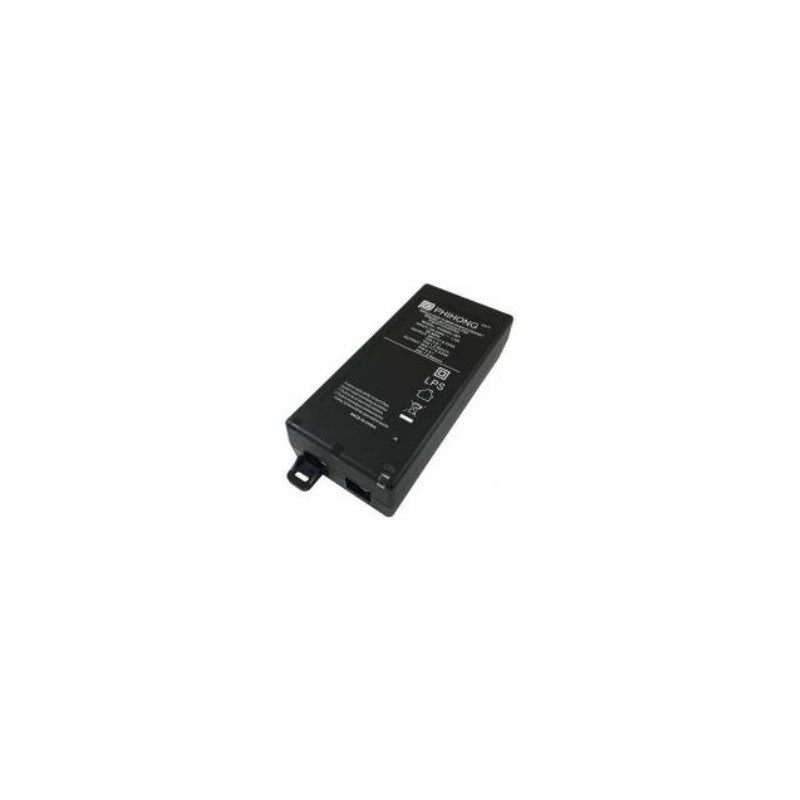

POE60U-1BT

Phihong PoE desktop switching power supply series POE60U

PoE injectors with a universal input, a single port and 60W (Hi-PoE). These devices are able to provide both voltage and data through an ethernet cable. They are compliant with insulation class I as well as IEEE802.3bt and are protected against short circuit, overload and overvoltage. We offer the type POE60U-1BT of this Phihong series.

  • output: 60W
  • input voltage: 90 to 264V AC
  • maximal input inrush current: 80A (230V AC)
  • maximal leakage current: 3,5mA
  • withstand voltage I/P-O/P: 4242V DC (1min / 10mA)
  • withstand voltage I/P-FG: 2121V DC (1min / 10mA)
  • operating temperature: -10 to +40°C
  • weight: 200g

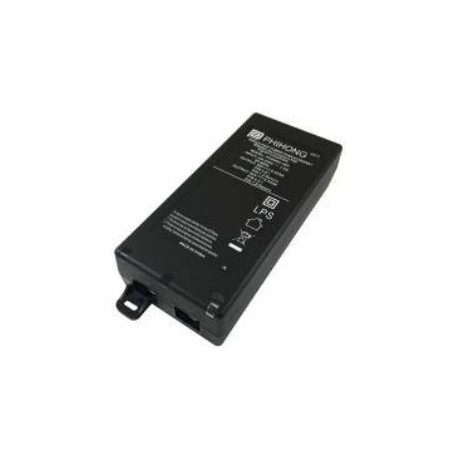

POE60U-1BT, Phihong PoE desktop switching power supplies, 60W, Hi-PoE, POE60U series

POE60U-1BT

130063 POE60U-1BT POE60U-1BT Phihong PoE desktop switching power supply series POE60U. PoE injectors with a universal input, a single port and 60W (Hi-PoE). These devices are able to provide both voltage and data through an ethernet cable. They are compliant with insulation class I as well as IEEE802.3bt and are protected against short circuit, overload and overvoltage. We offer the type POE60U-1BT of this Phihong series. output: 60W input voltage: 90 to 264V AC maximal input inrush current: 80A (230V AC) maximal leakage current: 3,5mA withstand voltage I/P-O/P: 4242V DC (1min / 10mA) withstand voltage I/P-FG: 2121V DC (1min / 10mA) operating temperature: -10 to +40°C weight: 200g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name POE60U-1BT
Output voltage [V] 56
Efficiency [%] 75
Output current [A] 1,07
Output power [W] 60
Data Sheet

Unit price

55,19 €

Stock: 20
