PPL65W-240

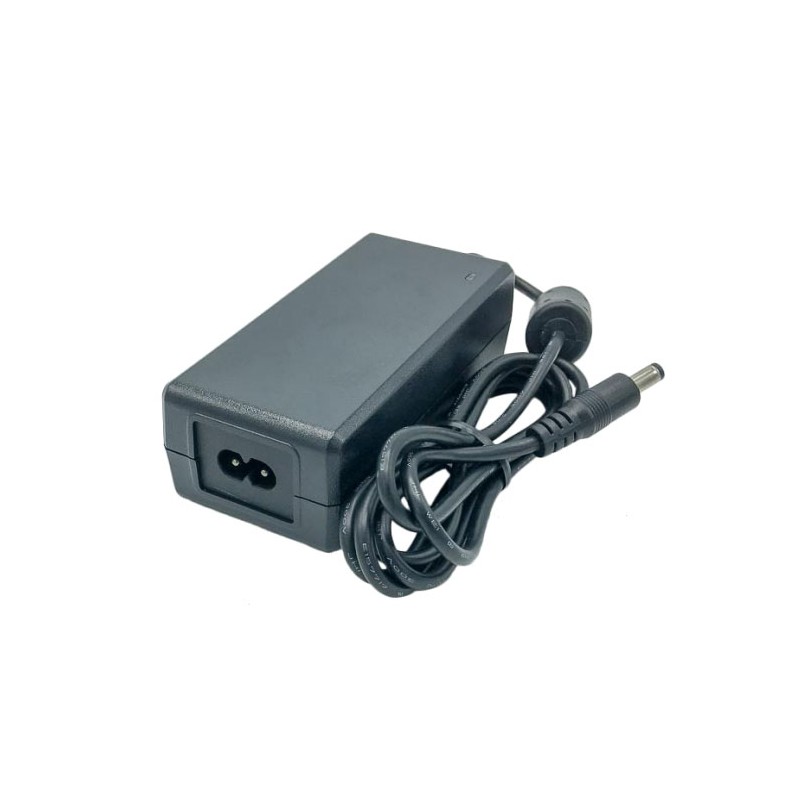

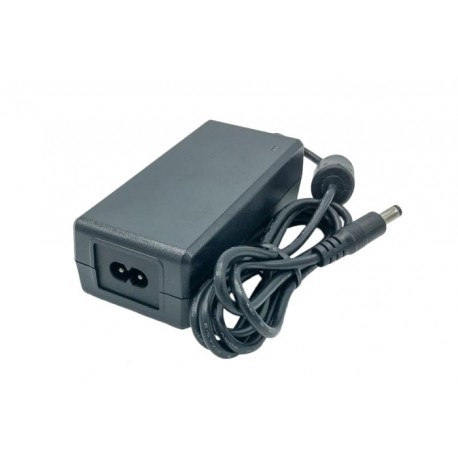

Phihong external power supply series PPL65W

External switching power supplies in a non-spillable housing with 65W, protection class II and a universal input. These devices comply with energy efficiency Level (EU) 2019/1782 + Level VI and are protected against overcurrent, overvoltage as well as short circuit. We offer the following types of this Phihong series: PPL65W-120, PPL65W-240 and PPL65W-480.

  • single output
  • output: 60 to 65,3W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • cable length: 150cm
  • input plug: IEC-320 C8
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: 0 to +40°C
  • dimensions: 115x53x38mm
  • weight: 310g

PPL65W-240

241515 PPL65W-240 PPL65W-240 Phihong external power supply series PPL65W. External switching power supplies in a non-spillable housing with 65W, protection class II and a universal input. These devices comply with energy efficiency Level (EU) 2019/1782 + Level VI and are protected against overcurrent, overvoltage as well as short circuit. We offer the following types of this Phihong series: PPL65W-120, PPL65W-240 and PPL65W-480. single output output: 60 to 65,3W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 80A cable length: 150cm input plug: IEC-320 C8 output plug: 5,5x2,1mm coaxial connector operating temperature: 0 to +40°C dimensions: 115x53x38mm weight: 310g

Specifications

manufacturer
Manufacturer's name PPL65W-240
Output voltage [V] 24
Efficiency [%] 90,3
Output current range [A] 0...2,71
Output voltage tolerance: [%] 5
Output power [W] 65,04
Ripple [mVp-p] 240
Data Sheet

Unit price

23,19 €

Stock: 3
Further delivery:
CW 46/2024
