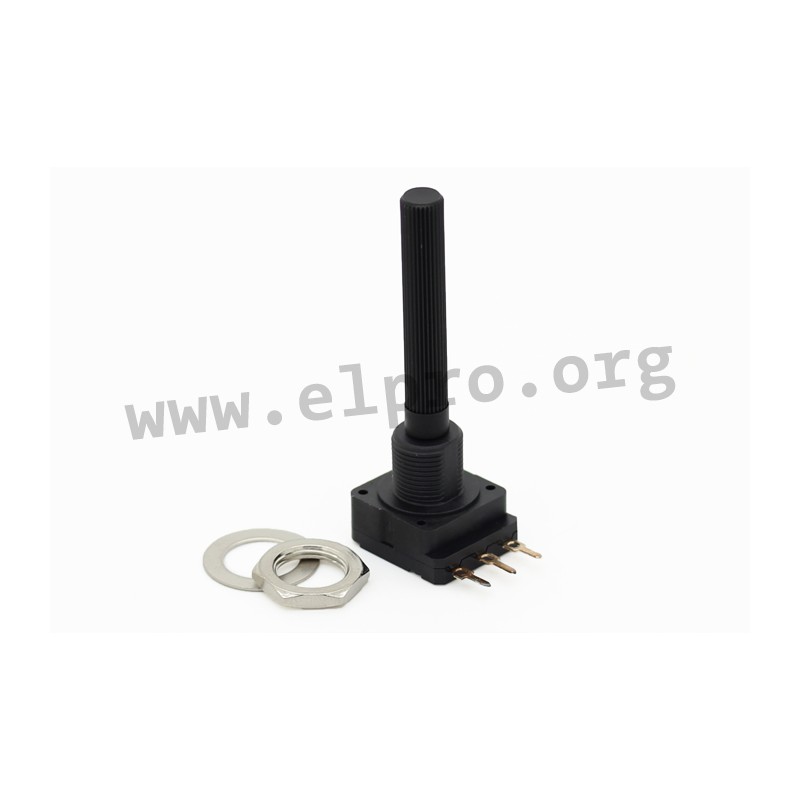

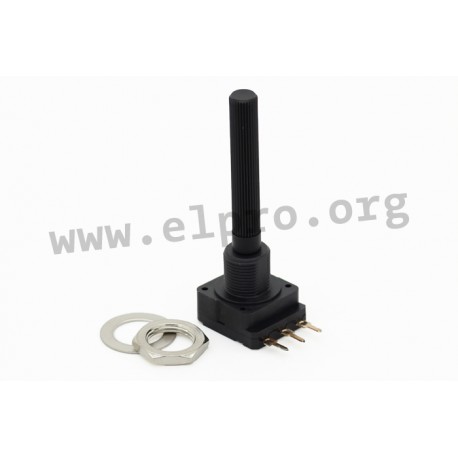

PC-16 SH10IM06 500R A2020

6mm, mono

• rated power (TU = 40°C): 0.25W
• operating voltage, max.: 250V DC
• resistance tolerance
100Ω...1MΩ: ±20%
>1MΩ: ±30%
• rotation
mechanical: 300° ±5°
electrical: 280° ±20°
• torque: 0.5...1.5Ncm
• stop torque: >40Ncm
• temperature range: -25...+70°C

PC-16 SH10IM06 500R A2020

33328 PC-16 SH10IM06 500R A2020 PC16SH10IP06501A2020TA PC16SH10IP06501A2020TA 6mm, mono. • rated power (TU = 40°C): 0.25W• operating voltage, max.: 250V DC• resistance tolerance100Ω...1MΩ: ±20%>1MΩ: ±30%• rotationmechanical: 300° ±5°electrical: 280° ±20°• torque: 0.5...1.5Ncm• stop torque: >40Ncm• temperature range: -25...+70°C

Specifications

manufacturer
Manufacturer's name PC16SH10IP06...
Resistance [Ω] 500
Power, max. [W] 0,25
Data Sheet

Unit price

1,04 €

Stock: 190
Further delivery:
CW 29/2024

Minimum order quantity 10 units or
multiples of 10.
