B 80 C 10000 FS

power bridge rectifiers 10 A

• case: epoxy with cooling plate
• glass passivated
• thermal resistance, typical, 2°K/W
• operating temperature range -55...+150°C
• flat steel

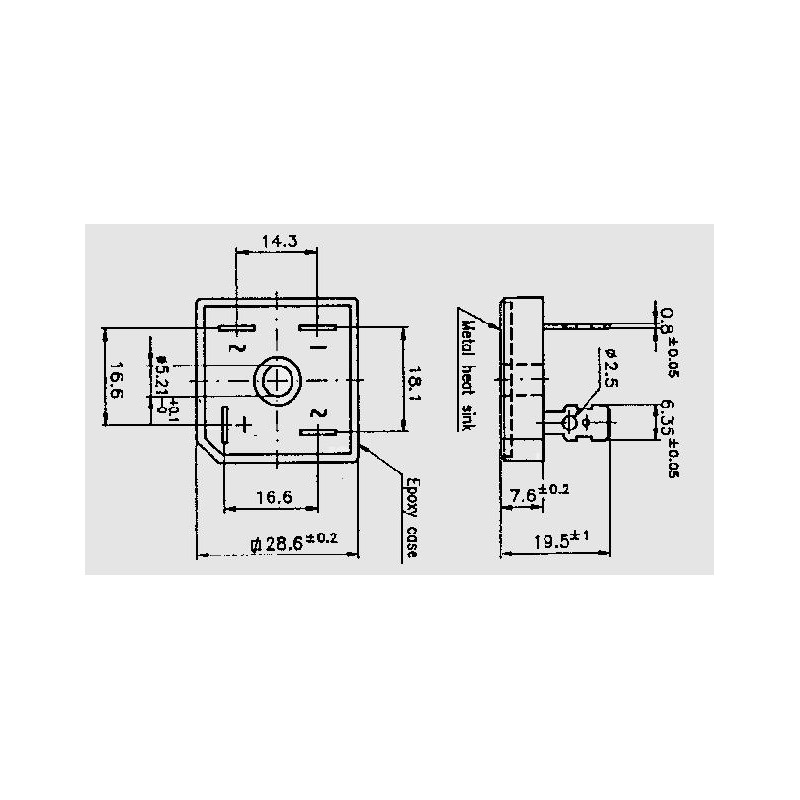

dimensions B _ C 10000 FS View larger

B 80 C 10000 FS

1990 B 80 C 10000 FS B 80 C 10000 FS power bridge rectifiers 10 A. • case: epoxy with cooling plate• glass passivated• thermal resistance, typical, 2°K/W• operating temperature range -55...+150°C• flat steel

Discontinued items. Only remainder of stock available.

Data sheet

case power bridge rectifiers
(max.) peak recurrent reverse voltage [V] 200
forward voltage [V] 1,1
reverse current [µA] 5
(max.) average forward (rectified) current [A] 10
(max.) RMS voltage [V] 140

1,64 €

stock: 1
