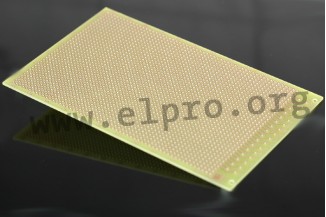

914-HP

for electronic professions

* test boards with Cu layer made of Laminated Paper or Epoxy resin glass fabric
* for electronic professions in accordance with IHK regulations
* dimensions: 160x100mm
* pitch: 2.54mm
* holes Ø: 1mm
* Cu layer: 35µm
* material thickness: 1.5mm

913 EP
* test boards for industrial electronics, equipment/manufacturing technology
* hole sequence: 37
* multi-point connector and mounting holes for 32-pin socket DIN 41612 housing D, pitch: 2.54mm

914 EP/914 HP
* test board for power electronics, equipment/technology
* conductor line: 37
* socket: 32 pin, DIN 41612, housing D, pitch: 2.54mm
* 914 EP: with rear position print for clear and easy assembly
* 914 HP: without position print

931 EP/931 HP
* test boards for electronic communications, information technology
* hole sequence: 37
* socket: 32-/64-/96-pin, DIN 41612, pitch: 2.54mm

931 EP QL
* test boards for electronic communications, information technology
* hole sequence: 37
* socket: 32-/64-/96-pin, DIN 41612, pitch: 2.54mm

933 HP
* test boards for electronic communications, information technology
with rear position print
* hole sequence: 37
* multi-point connector and mounting holes for 32-/64-/96-pin socket DIN 41612


914-HP

914-HP

246121 914-HP 914-HP for electronic professions. * test boards with Cu layer made of Laminated Paper or Epoxy resin glass fabric* for electronic professions in accordance with IHK regulations* dimensions: 160x100mm* pitch: 2.54mm* holes Ø: 1mm* Cu layer: 35µm* material thickness: 1.5mm913 EP* test boards for industrial electronics, equipment/manufacturing technology* hole sequence: 37* multi-point connector and mounting holes for 32-pin socket DIN 41612 housing D, pitch: 2.54mm914 EP/914 HP* test board for power electronics, equipment/technology* conductor line: 37* socket: 32 pin, DIN 41612, housing D, pitch: 2.54mm* 914 EP: with rear position print for clear and easy assembly* 914 HP: without position print931 EP/931 HP* test boards for electronic communications, information technology* hole sequence: 37* socket: 32-/64-/96-pin, DIN 41612, pitch: 2.54mm931 EP QL* test boards for electronic communications, information technology* hole sequence: 37* socket: 32-/64-/96-pin, DIN 41612, pitch: 2.54mm933 HP* test boards for electronic communications, information technologywith rear position print* hole sequence: 37* multi-point connector and mounting holes for 32-/64-/96-pin socket DIN 41612

Specifications

manufacturer
Manufacturer's name 914-HP
Material laminated paper
Material Hartpapier
Data Sheet

Unit price

2,19 €

Stock: 100
Further delivery:
CW 22/2024

Minimum order quantity 100 units or
multiples of 100.
