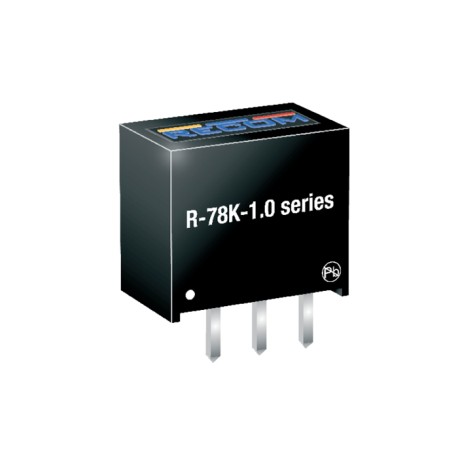

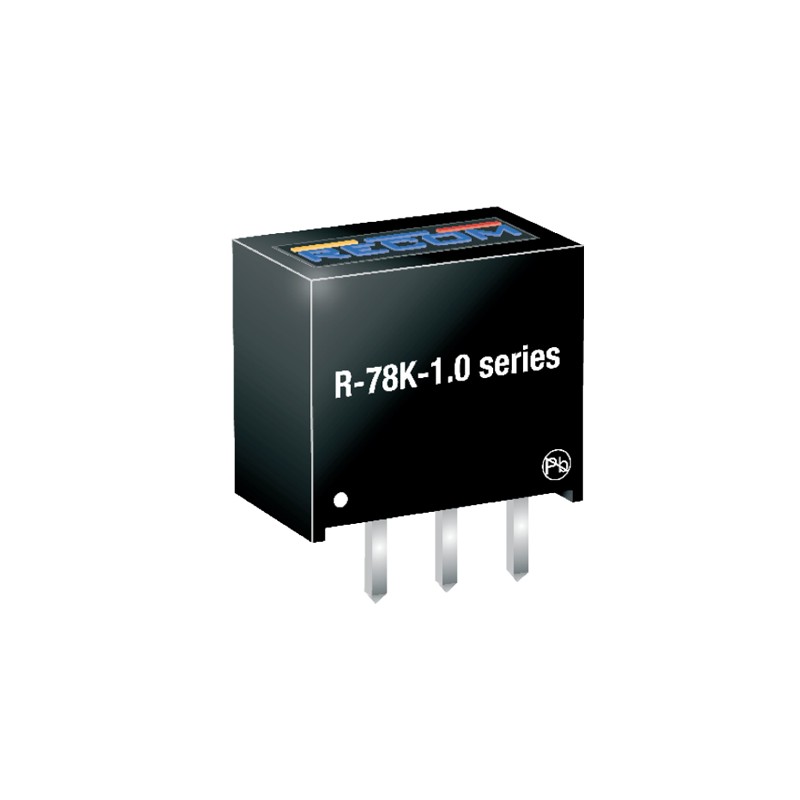

R-78K12-1.0

Recom DC/DC switching regulator series R-78K-1.0

DC/DC switching regulators in a SIL3 housing with 1A and an efficiency of up to 95%. These devices are suitable for PCB mounting and are protected against undervoltage as well as short circuit. They do not require an additional heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.8-1.0, R-78K2.5-1.0, R-78K3.3-1.0, R-78K5.0-1.0, R-78K9.0-1.0, R-78K12-1.0 and R-78K15-1.0.

  • single output
  • output current: 1A
  • maximal output voltage tolerance: ±3,5%
  • operating temperature: -40 to +90°C
  • dimensions: 11,5x7,55x10,2mm
  • weight: 1,7g
R-78K12-1.0, Recom DC/DC switching regulators, 1A, SIL3 housing, R-78K-1.0 series

R-78K12-1.0

242787 R-78K12-1.0 R-78K12-1.0 Recom DC/DC switching regulator series R-78K-1.0. DC/DC switching regulators in a SIL3 housing with 1A and an efficiency of up to 95%. These devices are suitable for PCB mounting and are protected against undervoltage as well as short circuit. They do not require an additional heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.8-1.0, R-78K2.5-1.0, R-78K3.3-1.0, R-78K5.0-1.0, R-78K9.0-1.0, R-78K12-1.0 and R-78K15-1.0. single output output current: 1A maximal output voltage tolerance: ±3,5% operating temperature: -40 to +90°C dimensions: 11,5x7,55x10,2mm weight: 1,7g

Specifications

manufacturer
Manufacturer's name R-78K12-1.0
Input voltage [V] 15...36
Output voltage [V] 12
Efficiency [%] 91
Ripple [mVp-p] 75
Data Sheet

Unit price

3,59 €

Stock: 0
Next incoming goods:
CW 20/2024
42 units

Further delivery:
CW 46/2024
