R1S-0505/P

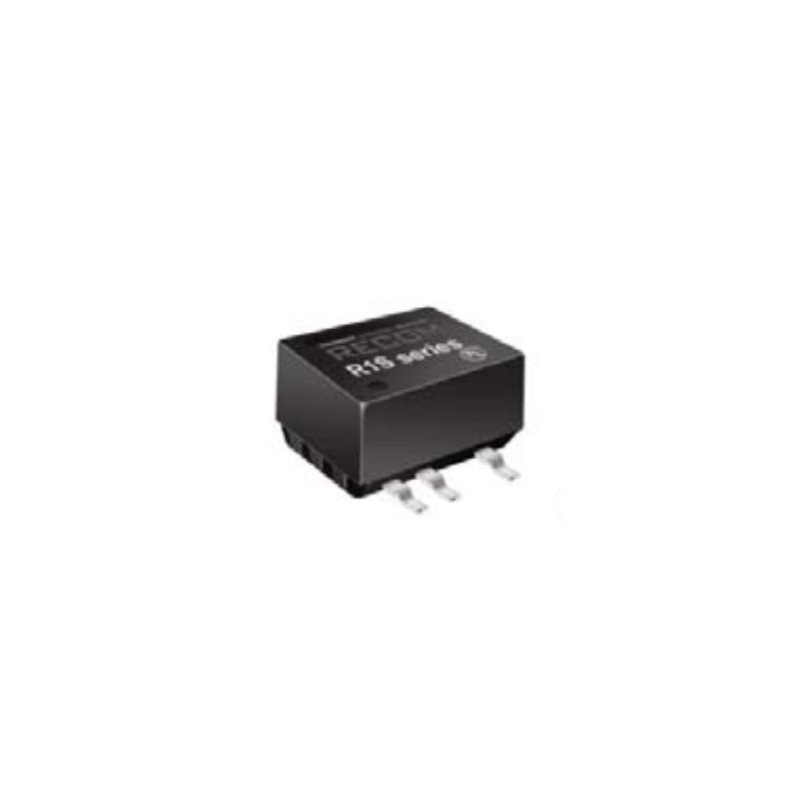

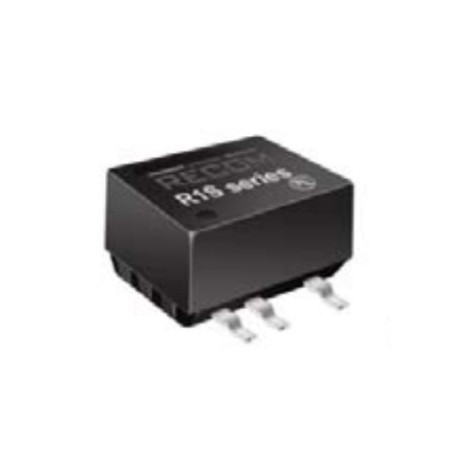

Recom DC/DC converter series R1S

High efficiency DC/DC converters in an SMD housing for direct PCB mounting. These devices have an input voltage ratio of 1:1 and an isolation voltage (tested for 1 second) of 1kV DC. We offer the following types of this series: R1S-3.33.3-R, R1S-0505-R and R1S-0505/P (this version is additionally equipped with a continuous short circuit protection).

  • single output
  • output: 1W
  • maximal output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +100°C
R1S-0505/P, Recom, 1 watt, SMD housing, R1S series

R1S-0505/P

118061 R1S-0505/P R1S-0505/P Recom DC/DC converter series R1S. High efficiency DC/DC converters in an SMD housing for direct PCB mounting. These devices have an input voltage ratio of 1:1 and an isolation voltage (tested for 1 second) of 1kV DC. We offer the following types of this series: R1S-3.33.3-R, R1S-0505-R and R1S-0505/P (this version is additionally equipped with a continuous short circuit protection). single output output: 1W maximal output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 1000V DC operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name R1S-0505/P
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 72...78
Data Sheet

Unit price

200,29 €

Volume discounts

Quantity Unit price
50 + 7,79 €

Stock: 63
Further delivery:
CW 38/2024
