R1SX-0505/H-R

Recom DC/DC converter series R1SX

DC/DC converters by manufacturer Recom in an SMD housing, suited for direct PCB mounting and an operating altitude of 5000m. These converters with an efficiency of up to 78% and an input/output insulation of 1kV DC are certified to IEC/EN/UL62368-1 (CB report) and have an operating temperature of -40°C to +100°C at full load. We offer the following types of this series in our web shop: R1SX-3.33.3-R, R1SX-3.305-R, R1SX-0505-R, R1SX-0505/H-R, R1SX-1205-R, and R1SX-1205/H-R.

  • single output
  • output: 1W
  • maximal output voltage tolerance: ±5%
  • operating temperature: -40 to +100°C
  • weight: 1,0g

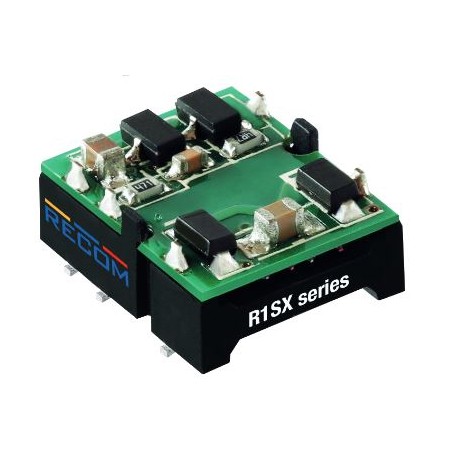

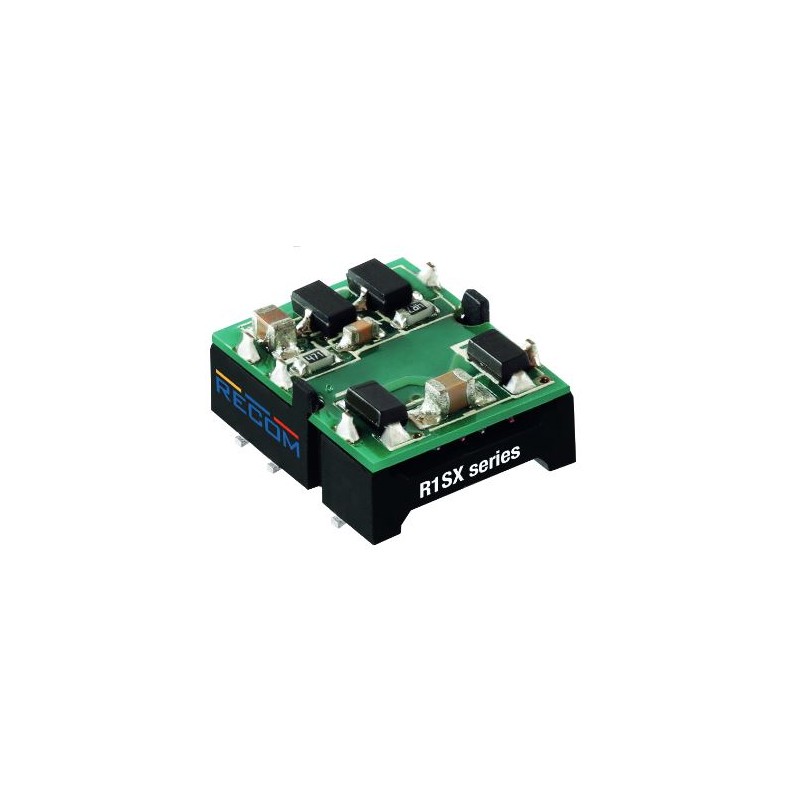

R1SX-0505/H-R, Recom DC/DC converters, 1W, SMD, R1SX series

R1SX-0505/H-R

118066 R1SX-0505/H-R R1SX-0505/H-R Recom DC/DC converter series R1SX. DC/DC converters by manufacturer Recom in an SMD housing, suited for direct PCB mounting and an operating altitude of 5000m. These converters with an efficiency of up to 78% and an input/output insulation of 1kV DC are certified to IEC/EN/UL62368-1 (CB report) and have an operating temperature of -40°C to +100°C at full load. We offer the following types of this series in our web shop: R1SX-3.33.3-R, R1SX-3.305-R, R1SX-0505-R, R1SX-0505/H-R, R1SX-1205-R, and R1SX-1205/H-R. single output output: 1W maximal output voltage tolerance: ±5% operating temperature: -40 to +100°C weight: 1,0g

Specifications

manufacturer
Manufacturer's name R1SX-0505/H-R
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 78
Ripple [mVp-p] 100
Input voltage [V DC] 5
Data Sheet

Unit price

4,59 €

Stock: 490
Further delivery:
CW 05/2026
