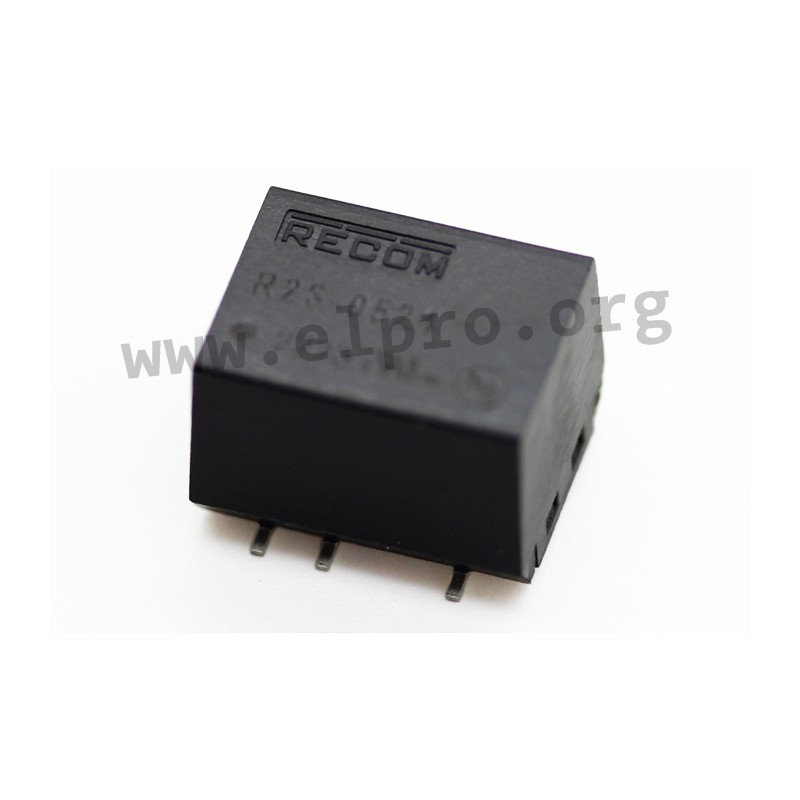

R2S-0524

Recom DC/DC converter series R2S and R2D

These converter modules with SMD housing are suitable for direct PCB mounting and for fully automated assembly. They are characterized by a high efficiency up to 85% and an input/output insulation 1kV DC. The devices are working with full power at ambient temperature up to 100° C. We are offering the following articles by Recom: R2S-0505, R2S-0524, R2S-0505/HP, R2D-0524, R2S-1205 and R2S-2405.

  • R2S_: single output
  • R2D_: dual output
  • output voltage tolerance, max.: ±5%
  • ripple & noise, max.: 150mVpp
  • operating temperature: -40 to +100°C

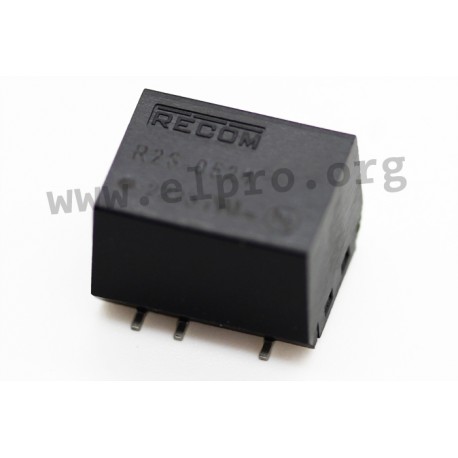

R2S-0524, Recom DC/DC converters, 2W, SMD, R2S and R2D series

R2S-0524

108931 R2S-0524 R2S-0524 Recom DC/DC converter series R2S and R2D. These converter modules with SMD housing are suitable for direct PCB mounting and for fully automated assembly. They are characterized by a high efficiency up to 85% and an input/output insulation 1kV DC. The devices are working with full power at ambient temperature up to 100° C. We are offering the following articles by Recom: R2S-0505, R2S-0524, R2S-0505/HP, R2D-0524, R2S-1205 and R2S-2405. R2S_: single output R2D_: dual output output voltage tolerance, max.: ±5% ripple & noise, max.: 150mVpp operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name R2S-0524
Input voltage [V] 5
Output voltage [V] 24
Output current range [mA] 83
Efficiency [%] 76...85
Data Sheet

Unit price

11,79 €

Stock: 40
Further delivery:
CW 14/2026
