R2S-0505-R

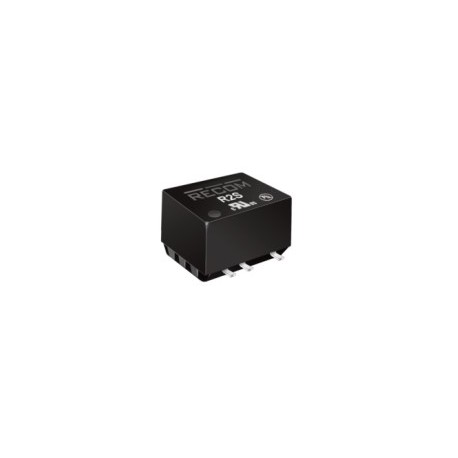

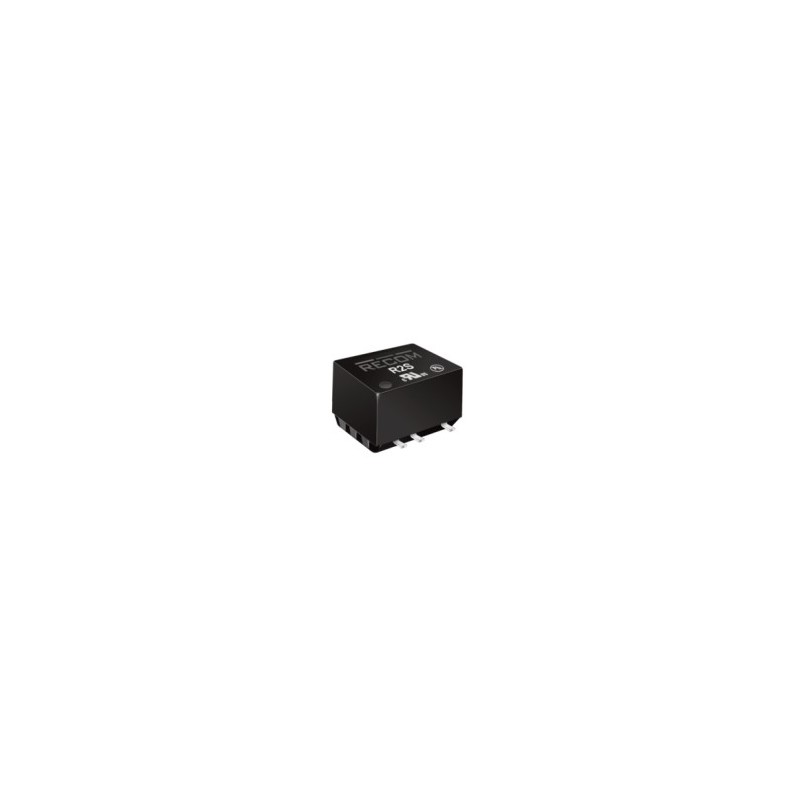

Recom DC/DC converter series R2S

Converter modules in a SMD housing with 2W and a single output. These devices are suitable for fully automated assembly. They provide full power even at ambient temperatures of up to 100°C and comply with UL60950-1 as well as EN55022 level A. We offer the type R2S-0505-R of this Recom series.

  • single output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 150mVpp
  • withstand voltage I/P-O/P: 1000V DC
  • operating temperature: -40 to +100°C
  • dimensions: 12,75x10,7x8,7mm
  • weight: 1,4g
R2S-0505-R, Recom DC/DC converters, 2W, SMD, R2S series

R2S-0505-R

235395 R2S-0505-R R2S-0505-R Recom DC/DC converter series R2S. Converter modules in a SMD housing with 2W and a single output. These devices are suitable for fully automated assembly. They provide full power even at ambient temperatures of up to 100°C and comply with UL60950-1 as well as EN55022 level A. We offer the type R2S-0505-R of this Recom series. single output output: 2W output voltage tolerance: ±5% maximal ripple and noise: 150mVpp withstand voltage I/P-O/P: 1000V DC operating temperature: -40 to +100°C dimensions: 12,75x10,7x8,7mm weight: 1,4g

Specifications

manufacturer
Manufacturer's name R2S-0505-R
Input voltage [V] 5
Output voltage [V] 5
Efficiency [%] 74...84
Output current [mA] 400
Data Sheet

Unit price

11,99 €

Stock: 172
Further delivery:
CW 28/2024
