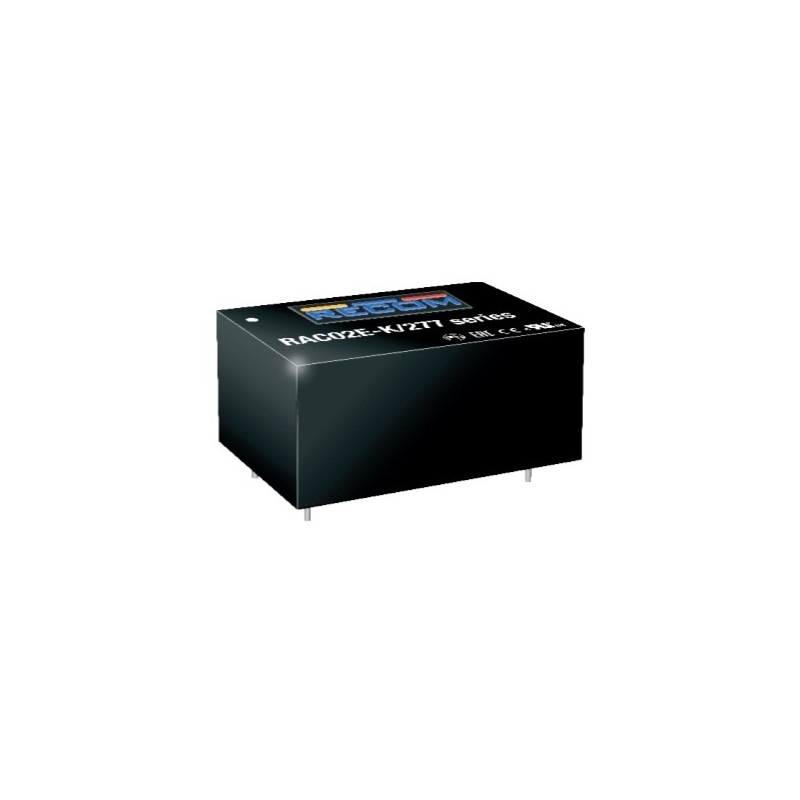

RAC02E-3.3SK/277

Recom AC/DC converter series RAC02E-K/277

AC/DC converter modules in a plastic case (enclosed) with 2W, a universal input and protection class II. These devices have a low no-load power consumption as well as an LPS certification and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with UL62368-1, IEC62368-1, EN62368-1, IEC61558-1, EN61558-1, IEC61558-2-16, EN61558-2-16 as well as EN55032 class B. We offer the following types of this Recom series: RAC02E-3.3SK/277, RAC02E-05SK/277, RAC02E-12SK/277, RAC02E-15SK/277 and RAC02E-24SK/277.

  • single output
  • output: 2W
  • input voltage: 85 to 305V AC (47 to 63Hz)
  • input current: 0,04A
  • maximal input inrush current: 20A
  • leakage current: 0,25mA
  • maximal no-load power consumption: 0,075W
  • withstand voltage I/P-O/P: 4000V AC
  • connection type: THT
  • operating temperature: -40 to +90°C
  • dimensions: 33,7x22,2x15,4mm
  • weight: 18,4g

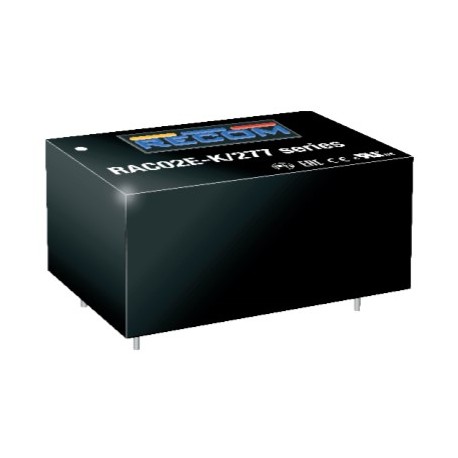

RAC02E-3.3SK/277, Recom AC/DC converters, 2W, PCB, RAC02E-K/277 series

RAC02E-3.3SK/277

236127 RAC02E-3.3SK/277 RAC02E-3.3SK/277 Recom AC/DC converter series RAC02E-K/277. AC/DC converter modules in a plastic case (enclosed) with 2W, a universal input and protection class II. These devices have a low no-load power consumption as well as an LPS certification and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with UL62368-1, IEC62368-1, EN62368-1, IEC61558-1, EN61558-1, IEC61558-2-16, EN61558-2-16 as well as EN55032 class B. We offer the following types of this Recom series: RAC02E-3.3SK/277, RAC02E-05SK/277, RAC02E-12SK/277, RAC02E-15SK/277 and RAC02E-24SK/277. single output output: 2W input voltage: 85 to 305V AC (47 to 63Hz) input current: 0,04A maximal input inrush current: 20A leakage current: 0,25mA maximal no-load power consumption: 0,075W withstand voltage I/P-O/P: 4000V AC connection type: THT operating temperature: -40 to +90°C dimensions: 33,7x22,2x15,4mm weight: 18,4g

Specifications

manufacturer
Manufacturer's name RAC02E-3.3SK/277
Output voltage [V] 3,3
Efficiency [%] 68
Output current [A] 0,6
Output voltage tolerance: [%] ±1
Output power [W] 2
Ripple [mVp-p] 120
Data Sheet

Unit price

6,89 €

Stock: 35
Further delivery:
CW 27/2024
