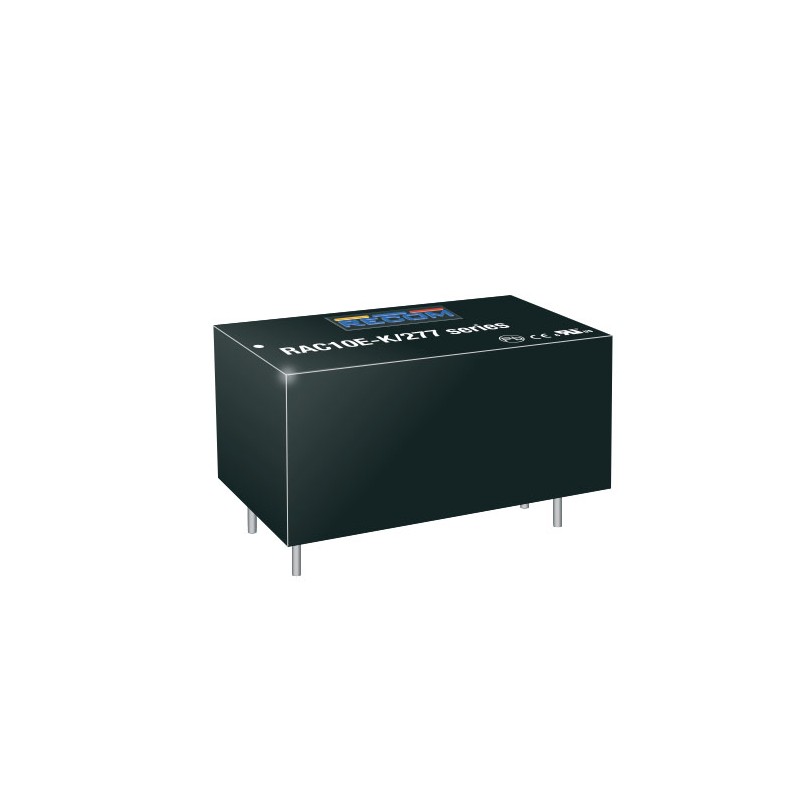

RAC10E-15SK/277

Recom AC/DC converter series RAC10E/277

AC/DC converters in an enclosed plastic housing with 10W, a universal input and a peak load capability of 140%. These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overvoltage. They have a low no-load power (<100mW), are suitable for an operating altitude of up to 5000m and comply with EN62368-1 as well as EN60335-1. We offer the following types of this Recom series: RAC10E-3.3SK/277, RAC10E-05SK/277, RAC10E-12SK/277, RAC10E-15SK/277 and RAC10E-24SK/277.

  • single output
  • output: 10W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • output voltage tolerance: ±1%
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -20 to +65°C
  • dimensions: 52,5x27,4x23mm
  • weight: 65g

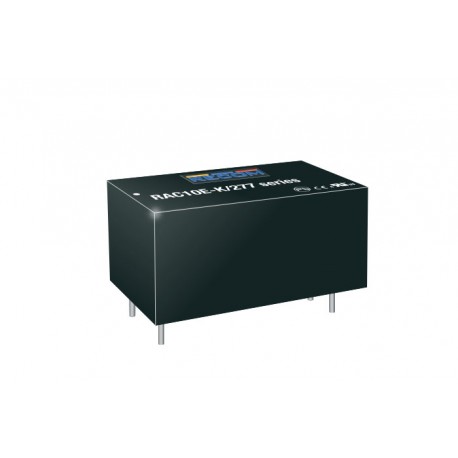

RAC10E-15SK/277, Recom AC/DC converters, 10W, PCB, RAC10E/277 series

RAC10E-15SK/277

241464 RAC10E-15SK/277 RAC10E-15SK/277 Recom AC/DC converter series RAC10E/277. AC/DC converters in an enclosed plastic housing with 10W, a universal input and a peak load capability of 140%. These devices are suitable for PCB mounting and are&nbsp;protected against overload, short circuit as well as overvoltage. They have a low no-load power (&lt;100mW), are suitable for an operating altitude of up to 5000m and comply with&nbsp;EN62368-1 as well as EN60335-1. We offer the following types of this Recom series:&nbsp;RAC10E-3.3SK/277,&nbsp;RAC10E-05SK/277,&nbsp;RAC10E-12SK/277,&nbsp;RAC10E-15SK/277 and&nbsp;RAC10E-24SK/277. single output output: 10W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC output voltage tolerance:&nbsp;&plusmn;1% maximal input inrush current: 30A withstand voltage I/P-O/P: 4000V AC operating temperature: -20 to +65&deg;C dimensions: 52,5x27,4x23mm weight: 65g

Specifications

manufacturer
Manufacturer's name RAC10E-15SK/277
Output current [mA] 670
Efficiency [%] 85
Ripple [mVp-p] 150
Output voltage range [V] 85...305
Data Sheet

Unit price

9,69 €

Stock: 6
Further delivery:
CW 35/2024
