Manufacturers

RAC20-15SK

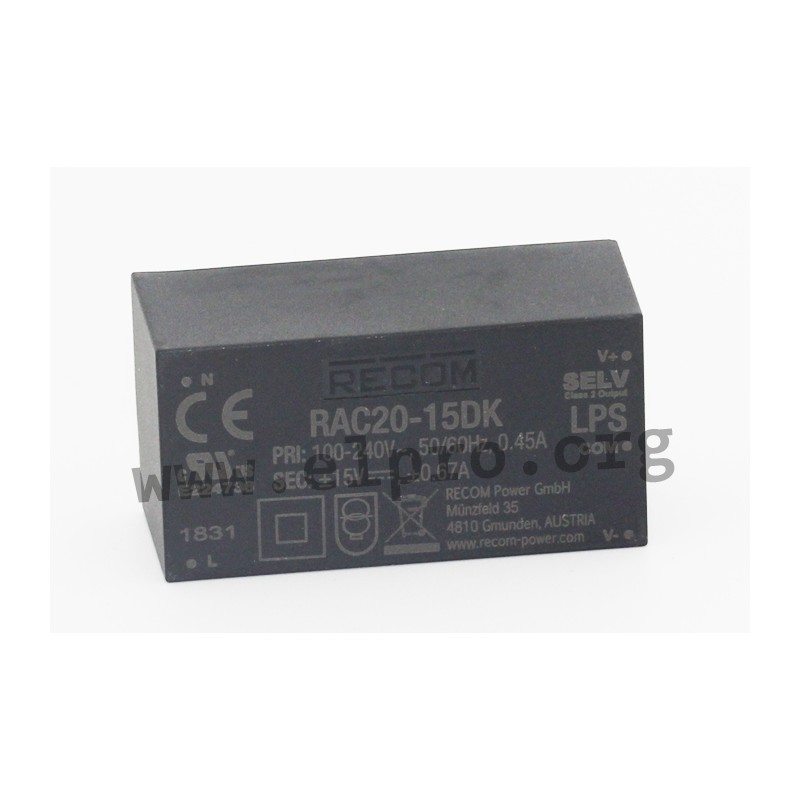

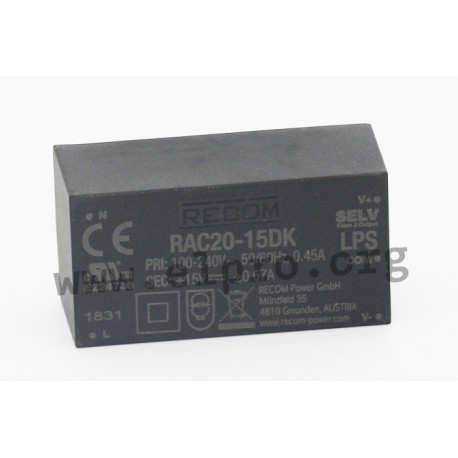

Recom AC/DC converter series RAC20-K

AC/DC converters in an enclosed plastic housing with 20W, a low no-load power (<40mW) and a universal input. These devices are suitable for PCB mounting and are protected against short circuit. They have a single (RAC20-_SK) or a dual output (RAC20-_DK), are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN60335, EN61558-1, EN61558-2-16, EN61204-3, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC20-05SK, RAC20-12SK, RAC20-15SK, RAC20-24SK, RAC20-48SK, RAC20-12DK and RAC20-15DK.

  • single or dual output
  • output: 20W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • operating temperature: -40 to +55°C
  • weight: 60g

RAC20-15SK

112651 RAC20-15SK RAC20-15SK Recom AC/DC converter series RAC20-K. AC/DC converters in an enclosed plastic housing with 20W, a low no-load power (&lt;40mW) and a universal input. These devices are suitable for PCB mounting and are protected against short circuit. They have a single (RAC20-_SK) or a dual output (RAC20-_DK), are suitable for an operating altitude of up to 5000m and comply with&nbsp;UL/EN62368-1,&nbsp;EN60335, EN61558-1, EN61558-2-16, EN61204-3, EN55032/14 as well as EN55024. We offer the following types of this Recom&nbsp;series:&nbsp;RAC20-05SK, RAC20-12SK, RAC20-15SK, RAC20-24SK, RAC20-48SK,&nbsp;RAC20-12DK and RAC20-15DK. single or dual output output: 20W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A operating temperature: -40 to +55&deg;C weight: 60g

Specifications

manufacturer
Manufacturer's name RAC20-15SK
Output voltage [V] 15
Efficiency [%] 86
Output voltage tolerance: [%] 2
Output power [W] 20
Ripple [mVp-p] 100
Output current [mA] 1333
Data Sheet

Unit price

14,39 €

Stock: 11
Further delivery:
CW 22/2024
