RAC20-15SK/W

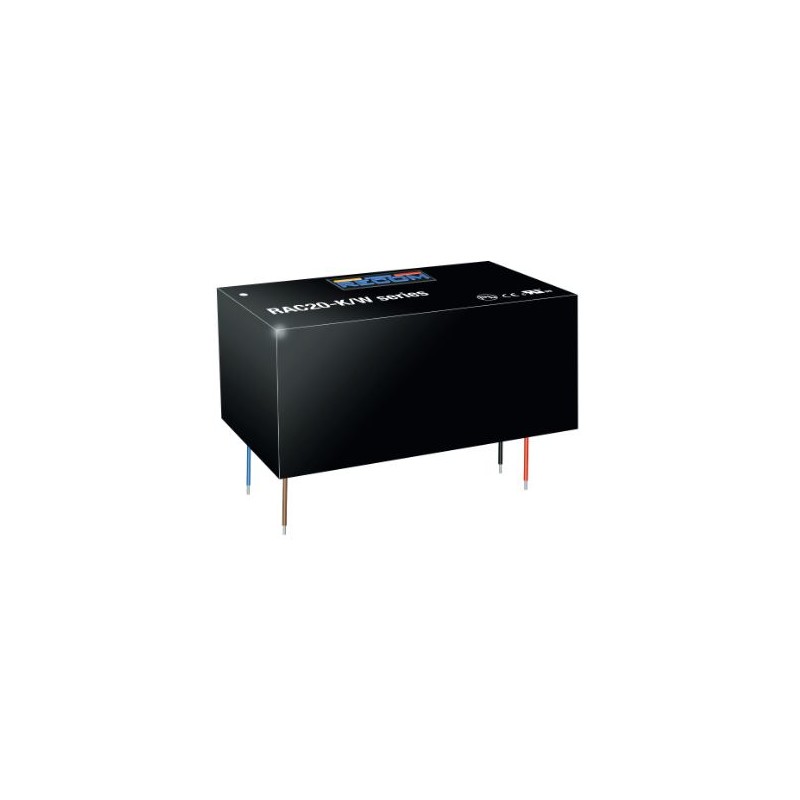

Recom AC/DC converter series RAC20-K/W

AC/DC converter modules in an enclosed plastic housing with 20W, a stranded wire connection, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN60335, EN61558-1, EN61558-2-16, EN61204-3, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC20-05SK/W, RAC20-12SK/W, RAC20-15SK/W and RAC20-24SK/W.

  • single output
  • output: 20W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • operating temperature: -40 to +55°C
  • weight: 65g

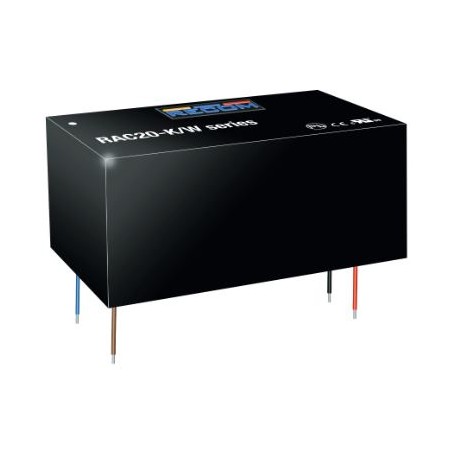

Recom RAC20-K/W series

RAC20-15SK/W

112656 RAC20-15SK/W RAC20-15SK/W Recom AC/DC converter series RAC20-K/W. AC/DC converter modules in an enclosed plastic housing with 20W, a stranded wire connection, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against short circuit. They are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN60335, EN61558-1, EN61558-2-16, EN61204-3, EN55032/14 as well as EN55024. We offer the following types of this Recom series: RAC20-05SK/W, RAC20-12SK/W, RAC20-15SK/W and RAC20-24SK/W. single output output: 20W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A operating temperature: -40 to +55°C weight: 65g

Specifications

manufacturer
Manufacturer's name RAC20-15SK/W
Output voltage [V] 15
Efficiency [%] 86
Output voltage tolerance: [%] 2
Output power [W] 20
Ripple [mVp-p] 100
Output current [mA] 1333
Data Sheet

Unit price

15,69 €

Stock: 41
Further delivery:
CW 30/2024
