RACM06E-3.3SK/277

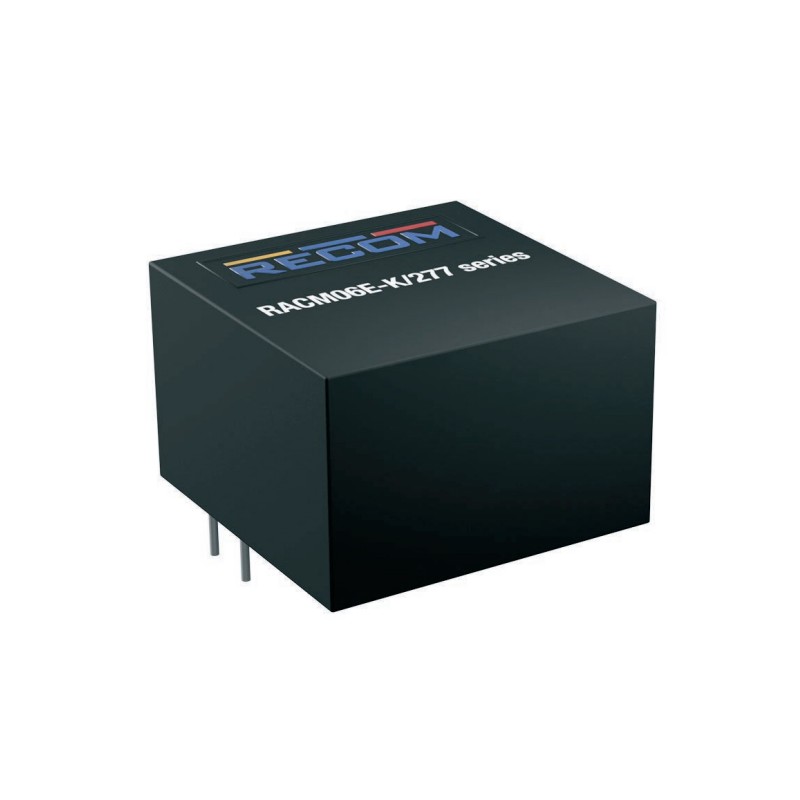

Recom AC/DC converter series RACM06E-K/277

AC/DC voltage converters in a plastic case with 6W, a low profile (17mm) and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit, overtemperature as well as overvoltage. They comply with EN55032 class B, EN62368-1 as well as EN60601-1 and are suitable for an operating altitude of up to 5000m. We offer the following types of this Recom series: RACM06E-3.3SK/277, RACM06E-05SK/277, RACM06E-12SK/277, RACM06E-15SK/277 and RACM06E-24SK/277.

  • single output
  • output: 6W
  • input voltage: 80 to 305V AC (47 to 63Hz), 120 to 430V DC
  • output voltage tolerance: ±2%
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +90°C
  • dimensions: 25,4x25,4x16,7mm
  • weight: 20g

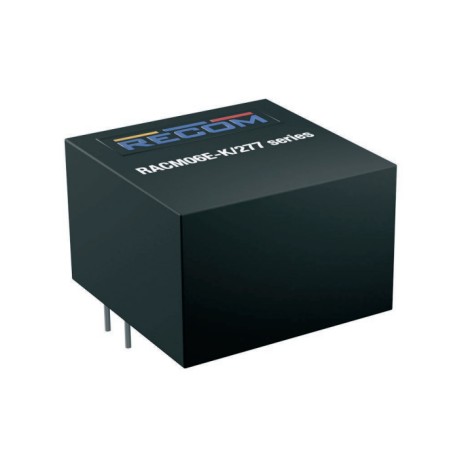

RACM06E-3.3SK/277, Recom AC/DC converters, 6W, for medical technology, RACM06E-K/277 series

RACM06E-3.3SK/277

243317 RACM06E-3.3SK/277 RACM06E-3.3SK/277 Recom AC/DC converter series RACM06E-K/277. AC/DC voltage converters in a plastic case with 6W, a low profile (17mm) and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit, overtemperature as well as overvoltage. They comply with EN55032 class B, EN62368-1 as well as EN60601-1 and are suitable for an operating altitude of up to 5000m. We offer the following types of this Recom series: RACM06E-3.3SK/277, RACM06E-05SK/277, RACM06E-12SK/277, RACM06E-15SK/277 and RACM06E-24SK/277. single output output: 6W input voltage: 80 to 305V AC (47 to 63Hz), 120 to 430V DC output voltage tolerance: ±2% maximal input inrush current: 30A withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +90°C dimensions: 25,4x25,4x16,7mm weight: 20g

Specifications

manufacturer
Manufacturer's name RACM06E-3.3SK/277
Output voltage [V] 3,3
Output current [mA] 1818
Efficiency [%] 73
Ripple [mVp-p] 120
Data Sheet

Unit price

9,99 €

Stock: 35
Further delivery:
CW 39/2024
