RACT25-700

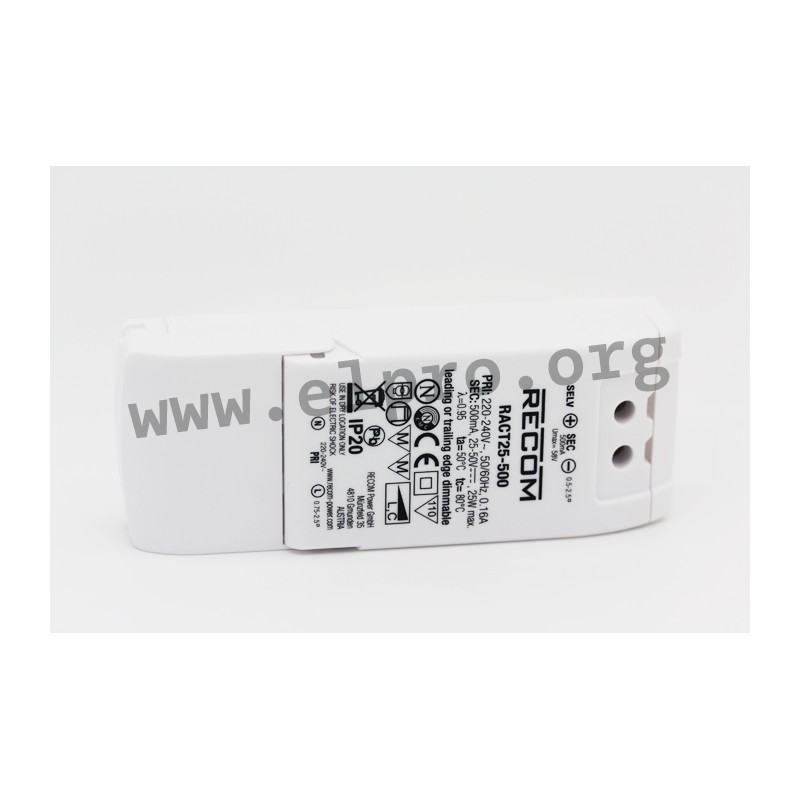

Recom LED driver series RACT25

LED drivers in a plastic housing (IP20) with 25W, a constant current, protection class II, screw terminals and a universal input. These devices have a TRIAC dimmer (phase-cut dimmer) and are protected against overload, overvoltage as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT25-500, RACT25-700 and RACT25-1050.

  • single output
  • output: 25W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 5A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 120x45x28mm
  • weight: 100g
Recom RACT25_ series

RACT25-700

110603 RACT25-700 RACT25-700 Recom LED driver series RACT25. LED drivers in a plastic housing (IP20) with 25W, a constant current, protection class II, screw terminals and a universal input. These devices have a TRIAC dimmer (phase-cut dimmer) and are protected against overload, overvoltage as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT25-500, RACT25-700 and RACT25-1050. single output output: 25W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 5A withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50°C dimensions: 120x45x28mm weight: 100g

Specifications

manufacturer
Manufacturer's name RACT25-700
Output voltage [V] 18...36
Ripple & noise [mA] 260
Output current tolerance [%] 5
Efficiency [%] 85
Output power [W] 25
Output current [mA] 700
Data Sheet

Unit price

16,99 €

Stock: 20
Further delivery:
CW 36/2024
