REM60-2412SW

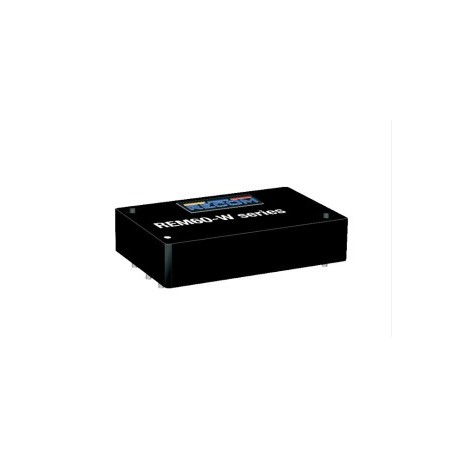

Recom DC/DC converter series REM60-W

DC/DC converter modules in a 2,3"x1,5" housing with 60W, an adjustable output voltage and a remote ON/OFF control. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a remote sense function as well as an input voltage ratio of 4:1 and comply with EN62368-1, EN60601-1, EN60601-1-2 as well as EN55033/35. We offer the following types of this Recom series: REM60-2405SW, REM60-2412SW and REM60-2424SW.

  • single output
  • output: 60W
  • maximal output voltage tolerance: ±1%
  • operating temperature: -40 to +105°C
  • weight: 51g
REM60-2412SW, Recom DC/DC converters, 60W, 2,3"x1,5", for medical technology, REM60-W series

REM60-2412SW

242957 REM60-2412SW REM60-2412SW Recom DC/DC converter series REM60-W. DC/DC converter modules in a 2,3"x1,5" housing with 60W, an adjustable output voltage and a remote ON/OFF control. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a remote sense function as well as an input voltage ratio of 4:1 and comply with EN62368-1, EN60601-1, EN60601-1-2 as well as EN55033/35. We offer the following types of this Recom series: REM60-2405SW, REM60-2412SW and REM60-2424SW. single output output: 60W maximal output voltage tolerance: ±1% operating temperature: -40 to +105°C weight: 51g

Specifications

manufacturer
Manufacturer's name REM60-2412SW
Output voltage [V] 12
Input voltage range [V] 9...36
Output current [mA] 5000
Efficiency [%] 91,5
Ripple [mVp-p] 100
Data Sheet

Unit price

161,49 €

Stock: 4
Further delivery:
CW 32/2024
