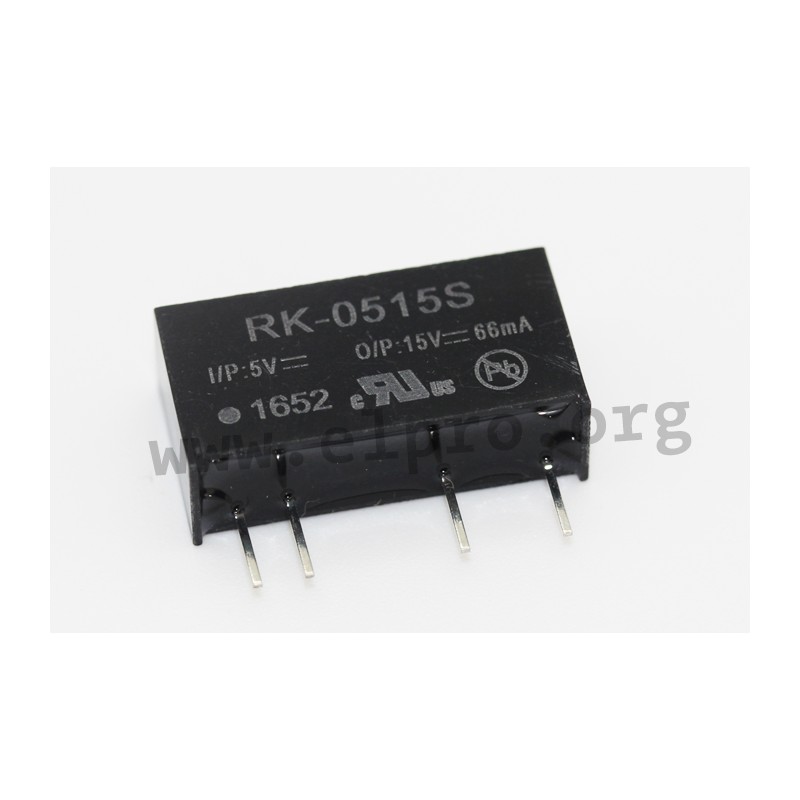

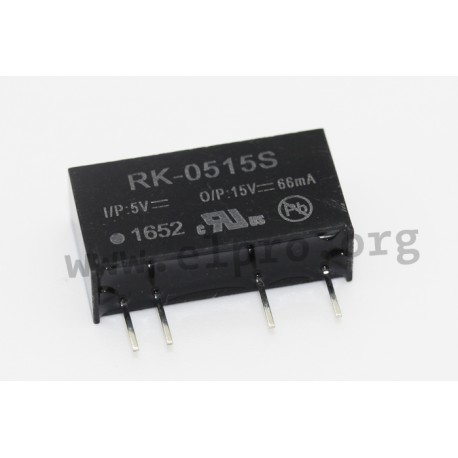

RK-2415S/H6

Recom DC/DC converter series RH and RK

These devices have got a SIL7 micro housing and are suitable for direct PCB mounting. They have an industry standard pin-out and their efficiency is up to 84%. The converter modules are approved for medical and IGBT applications and their input/output insulation is 3kV DC. We offer various types of this Recom series.

  • RK-_S: single output
  • RH-_D: dual output
  • RK-_/_P: continuous short circuit protection
  • voltage accuracy: ±5%
  • ripple & noise, max.: 100mVpp
  • operating temperature: -40 to +90°C
RK-2415S/H6,Recom DC/DC converters, 1W, SIL 7 housing, for medical technology, RH and RK series

RK-2415S/H6

118070 RK-2415S/H6 RK-2415S/H6 Recom DC/DC converter series RH and RK. These devices have got a SIL7 micro housing and are suitable for direct PCB mounting. They have an industry standard pin-out and their efficiency is up to 84%. The converter modules are approved for medical and IGBT applications and their input/output insulation is 3kV DC. We offer various types of this Recom series.  RK-_S: single output RH-_D: dual output RK-_/_P: continuous short circuit protection voltage accuracy: ±5% ripple & noise, max.: 100mVpp operating temperature: -40 to +90°C

Specifications

manufacturer
Manufacturer's name RK-2415S/H6
Input voltage [V] 24
Output voltage [V] 15
Output current range [mA] 66
Efficiency [%] 78...80
Data Sheet

Unit price

9,59 €

Stock: 60
Further delivery:
CW 38/2024
