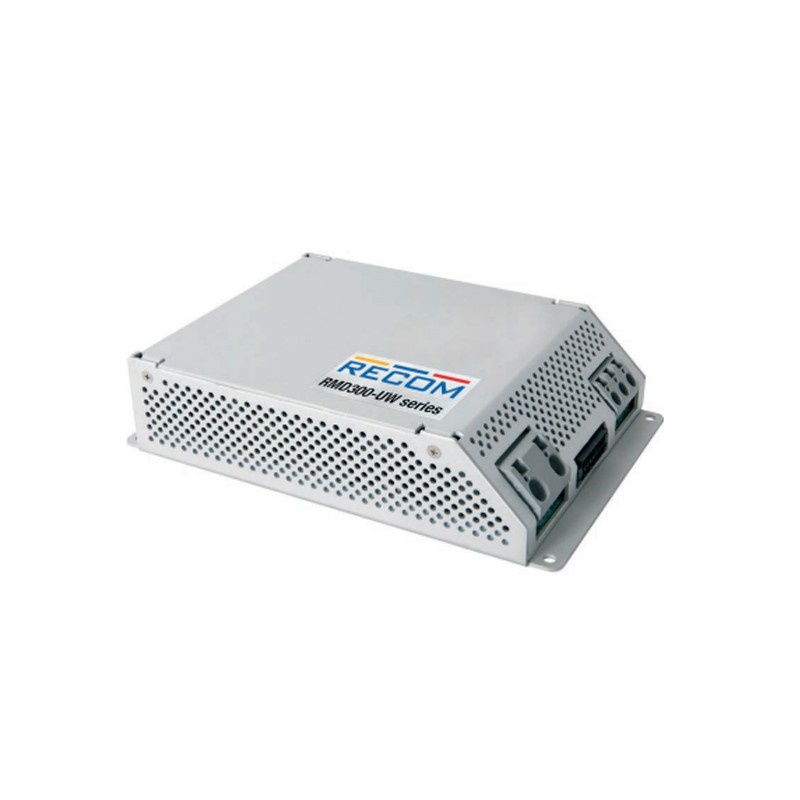

RMD300-110-24SUW

Recom DC/DC converters series RMD300-UW

DC/DC voltage converters in a 8,23"x5,55" housing, with DC-OK signal, parallel function, programmable output voltage, and remote function. These devices conform with the safety norms EN 62368-1 and EMV norms EN 50155, furthermore they are protected against overload, overtemperature, and short circuit. We offer the RMD300-110-24SUW type of this Recom series.

  • single output
  • input voltage ratio: 12:1
  • output current: 300W
  • connection terminal: plug-in
  • operating temperature: -40 to + 85°C
  • dimensions: 209,0x141,0x48mm
  • weight: 1100g

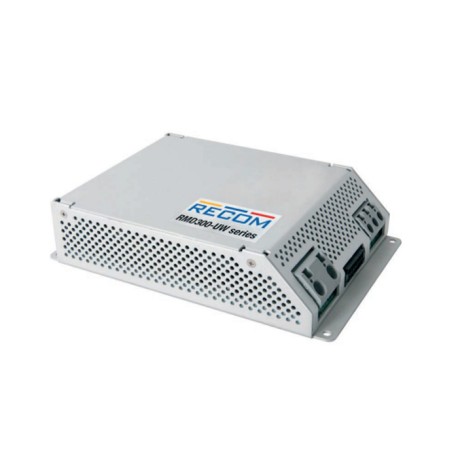

RMD300-110-24SUW, Recom DC/DC converters, 300W, closed frame, RMD300-UW series

RMD300-110-24SUW

247166 RMD300-110-24SUW RMD300-110-24SUW Recom DC/DC converters series RMD300-UW. DC/DC voltage converters in a 8,23"x5,55" housing, with DC-OK signal, parallel function, programmable output voltage, and remote function. These devices conform with the safety norms EN 62368-1 and EMV norms EN 50155, furthermore they are protected against overload, overtemperature, and short circuit. We offer the RMD300-110-24SUW type of this Recom series. single output input voltage ratio: 12:1 output current: 300W connection terminal: plug-in operating temperature: -40 to + 85°C dimensions: 209,0x141,0x48mm weight: 1100g

Specifications

manufacturer
Manufacturer's name RMD300-110-24SUW
Output voltage [V] 24
Input voltage range [V] 16,8...137,5
Efficiency [%] 94
Output current [A] 13,75
Ripple [mVp-p] 50
Data Sheet

Unit price

416,29 €

Stock: 0
Further delivery:
CW 16/2026
