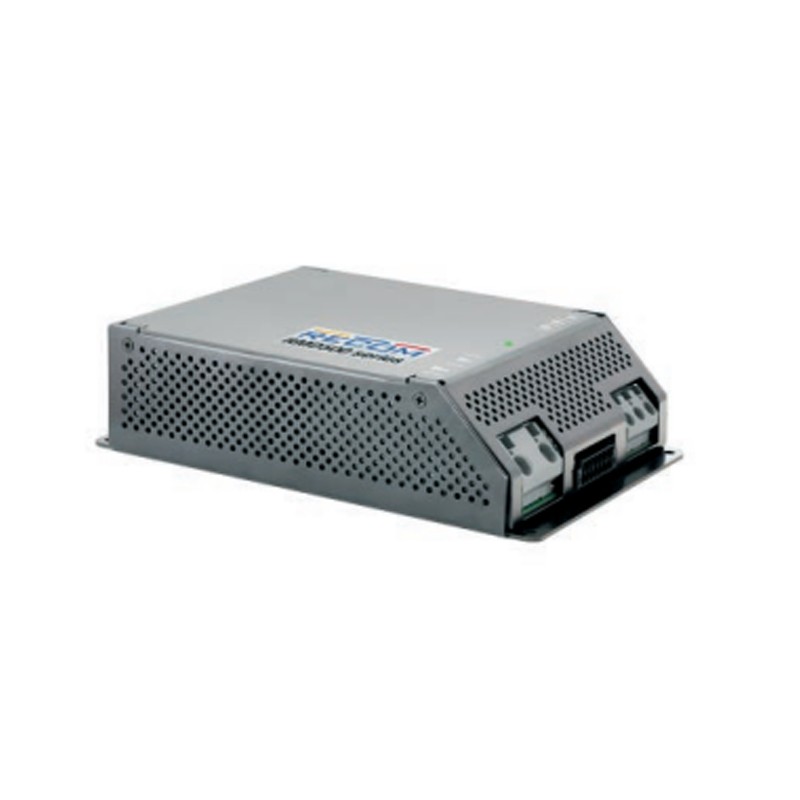

RMD500-110-24SEW

Recom DC/DC converters series RMD500-EW

DC/DC converters in a 8,23"x5,56" housing with a plug & play part for natural convection cooling and a remote function. These devices have a DC-OK signal, a parallel function, as well as a programmable output voltage. They conform with the safety and EMV norms EN62368-1, EN50155, EN55015, and EN55011. We offer the RMD500-110-24SEW type of this Recom series.

  • single output
  • output current: 500W
  • output voltage tolerance: ±1%
  • isolation voltage: 5000V AC (I/P-O/P), 3000V AC (I/P-FG), 3000V AC (O/P-FG)
  • connection terminal: plug in
  • operating temperature: -40 to +90°C
  • dimensions: 209x141x48mm
  • weight: 1100g

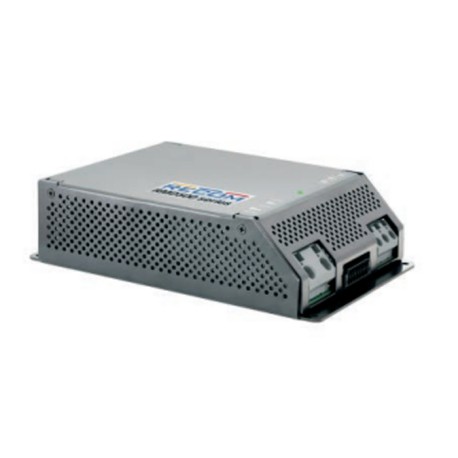

RMD500-110-24SEW, Recom DC/DC converters, 500W, enclosed, RMD500-EW series

RMD500-110-24SEW

247171 RMD500-110-24SEW RMD500-110-24SEW Recom DC/DC converters series RMD500-EW. DC/DC converters in a 8,23"x5,56" housing with a plug & play part for natural convection cooling and a remote function. These devices have a DC-OK signal, a parallel function, as well as a programmable output voltage. They conform with the safety and EMV norms EN62368-1, EN50155, EN55015, and EN55011. We offer the RMD500-110-24SEW type of this Recom series. single output output current: 500W output voltage tolerance: ±1% isolation voltage: 5000V AC (I/P-O/P), 3000V AC (I/P-FG), 3000V AC (O/P-FG) connection terminal: plug in operating temperature: -40 to +90°C dimensions: 209x141x48mm weight: 1100g

Specifications

manufacturer
Manufacturer's name RMD500-110-24SEW
Output voltage [V] 24
Input voltage range [V] 50,4...137,5
Efficiency [%] 95
Output current [A] 21
Ripple [mVp-p] 50
Data Sheet

Unit price

471,39 €

Stock: 0
Further delivery:
CW 16/2026
